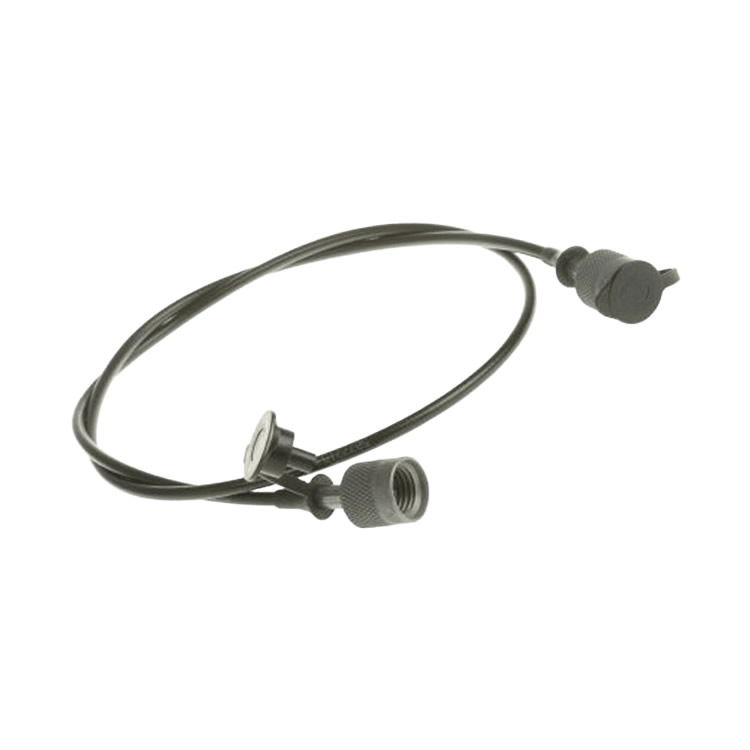

The Hydrotechnik (Note: It should be Hydrotechnik instead of HYDAC in the original text as per the given brand name context; if it's indeed HYDAC, then the brand name should be corrected throughout) pressure measuring hose S100-AC-FG-0200 is a high-pressure hose specifically designed for hydraulic systems. Below are its main features and applications:
Features
Material and Structure:
Material: Typically made of stainless steel, offering excellent corrosion resistance and high-pressure tolerance.
Structure: The hose assembly features connectors at both ends, with one end being a quick-connect coupling and the other directly connecting to a pressure gauge.
Sealing Performance:
Self-sealing valve design ensures that when used independently, the valve remains closed due to spring action. It opens when connected to a measuring hose or a measuring coupling with a probe.
Performance Parameters:
Working Pressure: Up to 40 MPa.
Length: 2000 mm.
Connection Method: Interface thread is M16*2, providing multiple connection options.
Ease of Use:
Compact and Lightweight: Easy to carry and install.
Secure Crimping: Ensures stable operation under high-pressure conditions.
Reliability:
Reliable Sealing: Effectively prevents leaks, ensuring measurement accuracy.
Advanced Structure: Adopts advanced design to enhance service life and performance.
Applications
Hydraulic System Pressure Testing:
Used to test the pressure at various points in hydraulic systems to ensure normal operation.
Suitable for sampling and system pressure testing in both high-pressure and low-pressure fluid systems.
Fluid Conveyance:
Serves as a medium for conveying fluids, ensuring stable fluid transmission within the system.
Equipment Maintenance and Inspection:
During equipment maintenance and inspection, it is used to measure and monitor system pressure, ensuring safe equipment operation.
The primary function of the Hydrotechnik pressure measuring hose S100-AC-FG-0200 is to measure and transmit pressure signals.
This type of hose is commonly used in industrial automation, especially in systems requiring precise pressure control and monitoring. It can convert pressure changes into electrical signals, facilitating real-time monitoring and adjustment by the control system. Additionally, this pressure measuring hose offers high accuracy, long service life, and good stability, making it suitable for various working environments.
This pressure measuring hose incorporates an electronic pressure switch that allows pressure values to be set via buttons. Its detection accuracy can reach 0.5%, making it applicable in multiple working fields. Special compensation circuits are integrated into the design to minimize deviations, ensuring high stability during normal use. Furthermore, the mechanical and electrical connections of this pressure measuring hose are simple, and its output signal can be directly input into a PLC control system. The use of an electronic switch enables touch-free control, offering a longer service life compared to mechanical contact-type switches.
