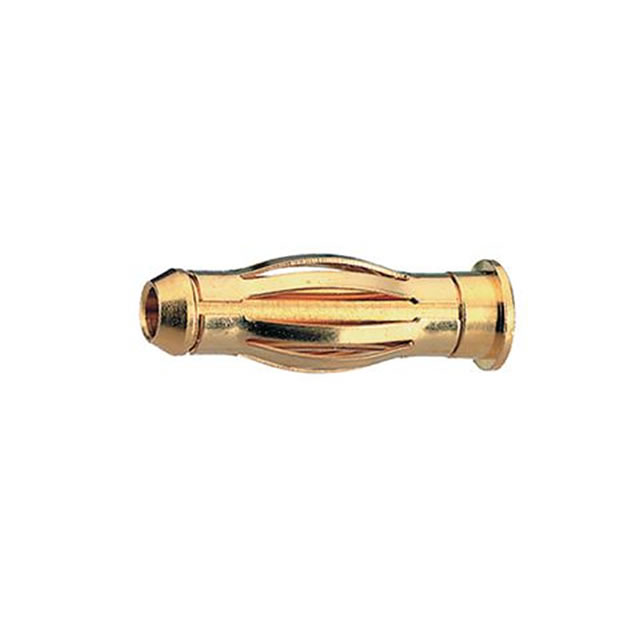

Stäubli 24.0110 Uninsulated Plug
Uninsulated,4 mm plug, made of brass, with spring-loaded MULTILAM. Ø 2 mm rigid socket, accepting spring-loaded 2 mm plugs (pluggable on both sides).
Technical data:
Diameter of plug system: 4mm; 2mm
Rated Values: 30 V, 25 A / 60 V, 25 A
Surface treatment electrical contact: Au
Base material electrical contact: CuZn
Test accessory acc. to: IEC EN 61010-031
