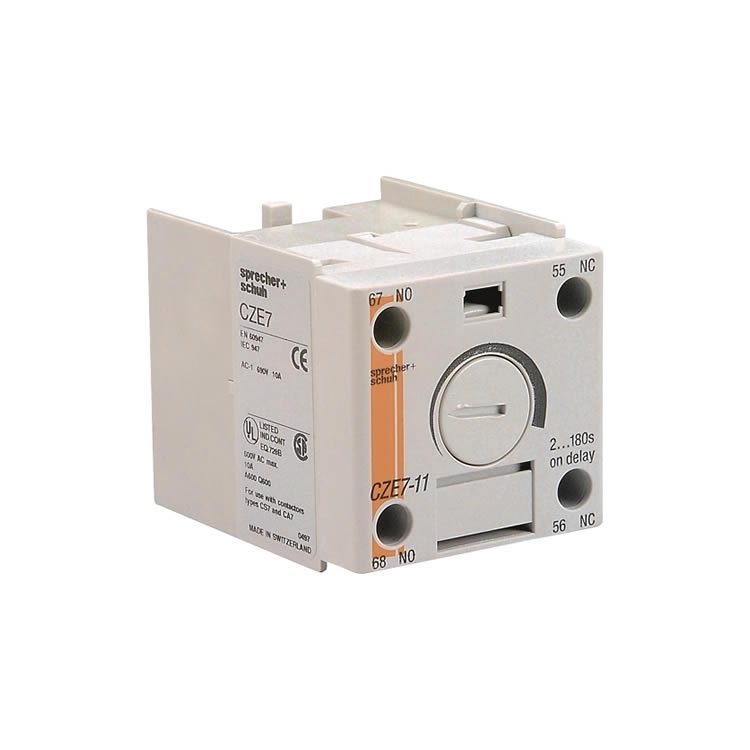

Sprecher+Schuh CA7 Series Timer Pneumatic On Delay 180s CZE7-180

The Sprecher + Schuh CA7 contactors are the ideal solution for reliable and durable electrical components. It is a modern and flexible IEC power contactor for DOL starting needs with up to 100A AC3 and wide range selection covering from 4kW up to 63kW (400V).

Voltage type for actuating AC

Rated control supply voltage Us at AC 50HZ 346-440 V

Number of outputs, delayed, change-over

contact 1

Type of electric connection Screw connection

Function delay-on energization No

Function delay on de-energization No

Function floating contact on energization No

Function floating contact on de-energization No

Function star-delta No

Function pulse shaping No

Function flashing, starting with pause, fixed

time No

Function flashing, starting with pulse, fixed

time No

Clock function, starting with pause, variable No

Clock function, starting with pulse, variable No

Time range 180 s

Time setting accuracy 5 %

Power supply reset time 50 ms

Power consumption 0.5 VA

Electrical lifespan (control contacts) 200000 c (contacts)
