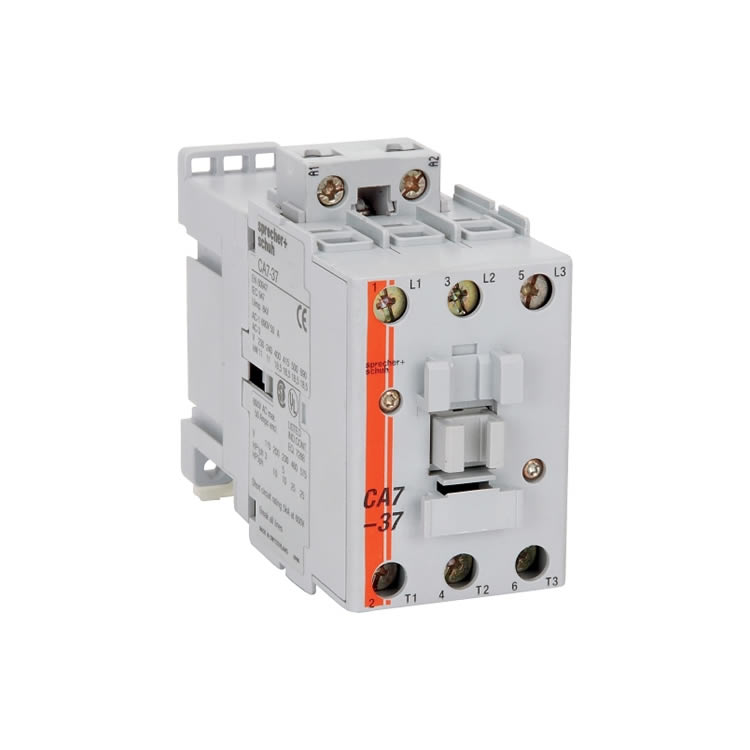

The Sprecher + Schuh CA7 contactors are the ideal solution for reliable and durable electrical components. It is a modern and flexible IEC power contactor for DOL starting needs with up to 100A AC3 and wide range selection covering from 4kW up to 63kW (400V).
Number of normally open contacts as main contact 3
Number of normally closed contacts as main contact 0
Rated operation current Ie at AC-3, 400 V 37 A
Rated operation power at AC-3, 400 V 20 kW
Rated operation current Ie at AC-1, 400 V 65 A
Max. rated operation voltage Ue AC 690 V
Voltage type for actuating AC
Control supply voltage Us at AC 50HZ 240 V
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated operation current Ie at AC-3, 690 V 21 A
Rated operation power at AC-3, 690 V 18.5 kW
Rated operation power at AC-4, 400 V 6.3 kW
Control supply voltage Us at AC 60HZ 277 V
Power consumption, AC coil pickup 105 VA
Power consumption, AC coil hold-in 12.3 VA
Type of electrical connection of main circuit Screw connection
Rated operation current Ie at AC-4, 400 V 14 A
