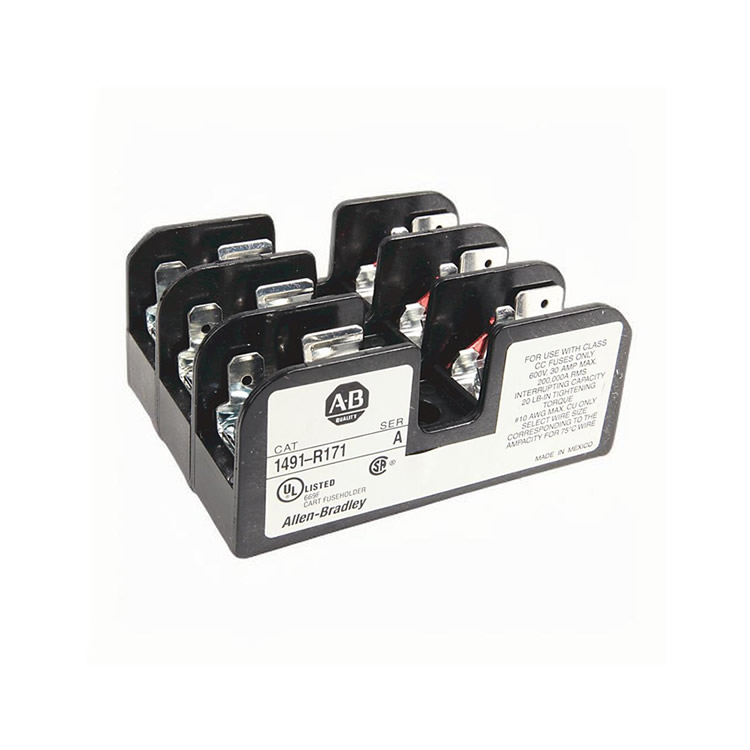

Electrical Parameters
• Maximum Voltage
• AC: 600V
• DC: 250V
• Short-Circuit Withstand Capability
• 200,000 RMS symmetrical amperes (compliant with UL/CSA standards)
• Fuse Compatibility Types
• Class CC (0.5–30A)
• Class J (31–100A)
• Class R (30–400A)
• Terminal Capacity
• Wire Size: Maximum #8 AWG (10 mm²)
• Torque Range: 20–50 lb-in (2.26–5.65 N·m)
Mechanical and Environmental Characteristics
• Protection Rating
• IP00 (to be used with an enclosure)
• Operating Temperature
• Open Installation: -20°C to +55°C
• Enclosed Installation: -20°C to +40°C
• Material Construction
• Base: Phenolic resin or ceramic
• Fuse Clips: Tin-plated copper alloy
