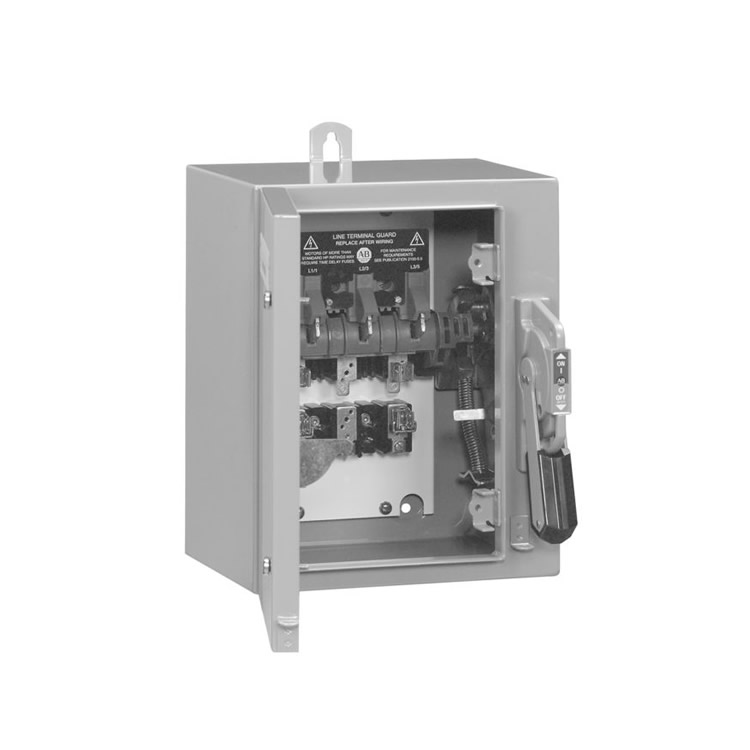

• Product Series: Bulletin 1494G Heavy Industrial Safety Disconnect Switches.
• Enclosure Type: Type 3R/4/12 Painted Metal Enclosure.
• Switch Rating: 30 A (continuous current).
• Number of Poles: 3-pole, 3-phase.
• Fuse Type: Class J Fuses (600V AC).
• Key Parameters:
• Horsepower (Hp):
◦ 480V AC: 15 Hp (standard)
◦ 600V AC: 30 Hp (maximum)
• Continuous Current: 30 A (600V AC/250V DC).
• Certifications: UL, CSA, CE, CCC.
