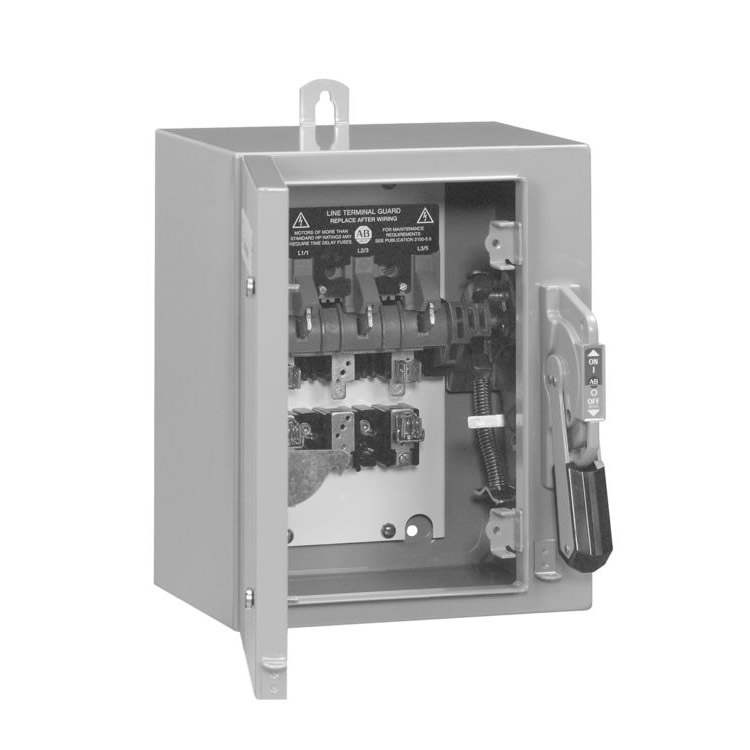

Product Model: 1494G-BF3N-98-412
Basic Model
• 1494G-BF3N: Features a standard-sized enclosure, is of the non-fusible type, has 3 poles and 3 phases, and comes with a Type 3R/4/12 painted metal enclosure.
Detailed Specification Parameters
Electrical Ratings
• Continuous Current Rating: 30 A (600V AC / 250V DC).
• Insulation Voltage: Ui (UL) IEC (600) 660V.
• Horsepower Ratings (UL/CSA/NEMA):
• 230V/60 Hz: 7.5 Hp
• 460V/60 Hz: 15 Hp
• 575V/60 Hz: 20 Hp
• 250V DC: 5 Hp
• Maximum Power for IEC Applications (AC23):
• 220V/50 Hz: 5.5 kW
• 440V/50 Hz: 11 kW
• 550V/50 Hz: 15 kW
Auxiliary Contacts (-98 Option)
• Type: 1 normally open contact (1 N.O.).
• Ratings:
• NEMA/EEMAC: A600, 0600
• IEC: AC 15, DC 13 (compliant with IEC/EN 60947-5-1 and UL 508 standards), minimum 17V/5mA.
Mechanical Characteristics
• Operating Handle: Painted metal handle (-412 option), suitable for Type 1, 3R, 4, and 12 environments.
• Mechanical Life: 20,000 operations (typical).
• Operating Frequency: Maximum 300 cycles/hour.
• Ingress Protection (IP) Rating: IP standard (specific rating depends on the enclosure type).
• The 1494G-BF3N-98-412 is a 30A non-fusible safety disconnect switch equipped with 1 normally open auxiliary contact and a painted metal handle, suitable for industrial and heavy commercial applications. It complies with multiple international certifications and standards.
