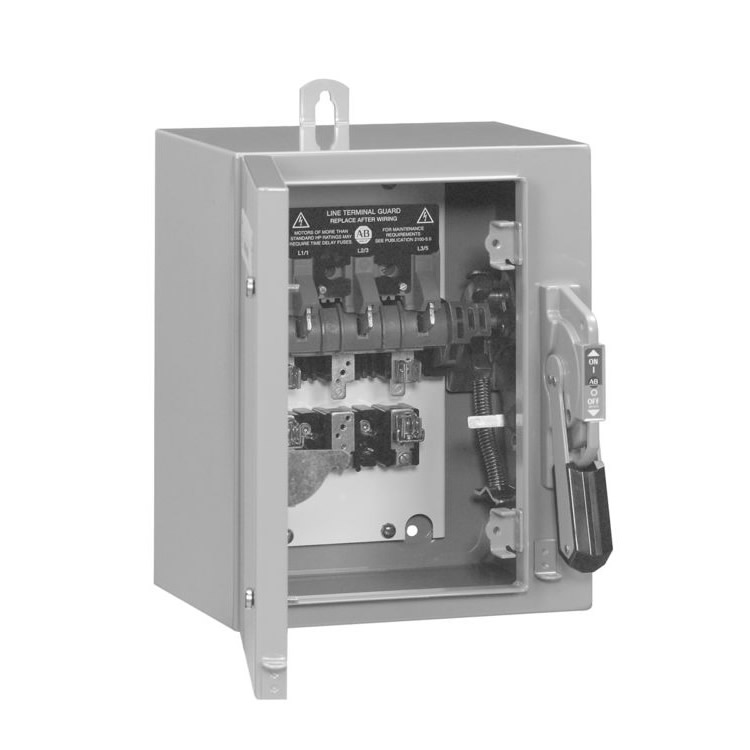

• Product Model: 1494G-CF3N
• Product Type: Industrial Safety Disconnect Switch
• Rated Current: 60 A
• Rated Voltage: 600 V AC / 250 V DC
• Number of Poles: 3-Pole (3-Phase)
• Enclosure Type: Type 3R/4/12 (Painted metal enclosure resistant to rain, splashing, and dust)
• Fusibility: Non-Fusible
Electrical Parameters
Rated Insulation Voltage:
• Ui (UL/IEC): 600 V (660 V IEC)
Horsepower Ratings:
Voltage Standard Horsepower Maximum Horsepower
480V AC/60Hz 15 HP 50 HP
600V AC/60Hz 15 HP 60 HP
575V AC/60Hz 50 HP 75 HP
250V DC 10 HP -
Continuous Current:
• 600V AC: 60 A
• 250V DC: 60 A
Maximum Power for IEC Applications (kW, AC23 Category):
Voltage Maximum Power
440V/50Hz 22 kW
550V/50Hz 37 kW
