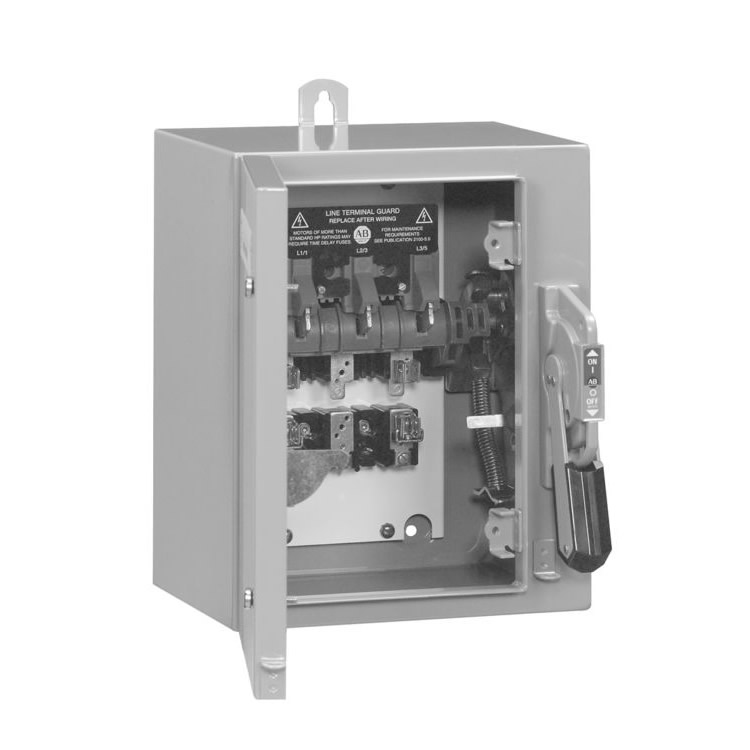

• Product Model: 1494G-DF3J6
• Product Description: Industrial safety disconnect switch with a standard-sized enclosure
• Rated Current: 100 A
• Number of Poles: 3-pole, 3-phase
• Fuse Type: Class J
• Rated Voltage: 600V AC / 250V DC
• Enclosure Type: Type 3R/4/12 (Rain-resistant, water-resistant, dust-resistant, painted metal enclosure)
Electrical Ratings
Parameter Value
Rated Insulation Voltage (Ui) (600) 660V
Rated Horsepower (HP) - 60Hz 230V: 30 HP
460V: 60 HP
575V: 75 HP
Continuous Current 600V AC: 100 A
250V DC: 100 A
Maximum Power for IEC Applications (AC23) 220V/50Hz: 22 kW
440V/50Hz: 45 kW
550V/50Hz: 55 kW
Short-Circuit Withstand Capacity Without fuses or with Class H fuses: 10,000 A
With Class J or Class R fuses: 200,000 A
