Product Model: 1494G-DF3J6-412-414

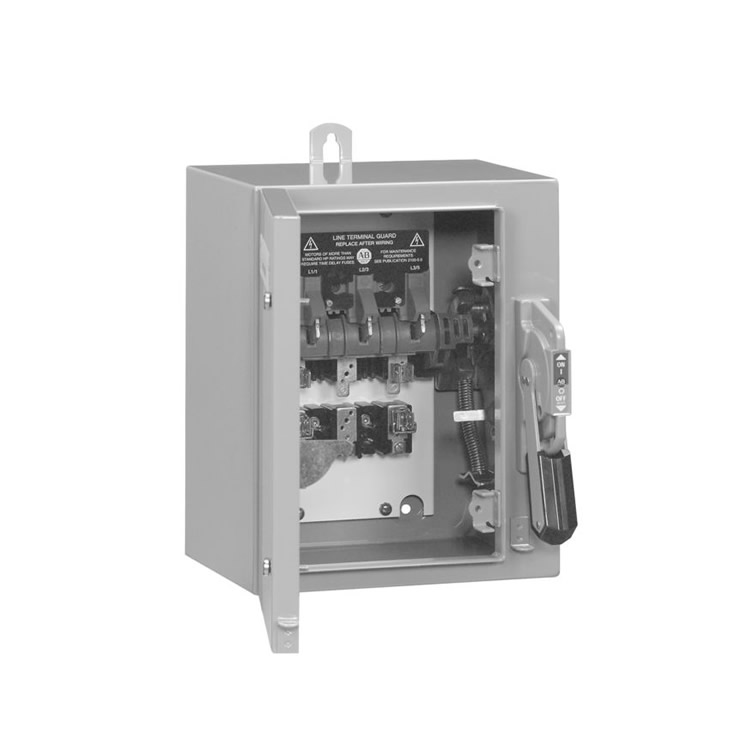

• Product Description: Industrial safety disconnect switch with a standard-sized enclosure and optional accessories
• Rated Current: 100 A
• Number of Poles: 3-pole, 3-phase
• Fuse Type: Class J
• Rated Voltage: 600V AC / 250V DC
• Enclosure Type: Type 3R/4/12 (Rain-resistant, water-resistant, dust-resistant, painted metal enclosure)
• Optional Accessories:
• -412: Painted metal operating handle (replaces the standard non-metallic handle)
• -414: Transparent protective fuse cover with door, providing additional protection for the line and load sides
Electrical Ratings
Parameter Value
Rated Insulation Voltage (Ui) (600) 660V
Rated Horsepower (HP) - 60Hz 480V AC: 30 HP (standard) / 60 HP (maximum)
600V AC: 30 HP (standard) / 75 HP (maximum)
Continuous Current 600V AC: 100 A
250V DC: 100 A
Maximum Power for IEC Applications (AC23) 380...440V/50Hz: 45 kW
500...600V/50Hz: 55 kW
Short-Circuit Withstand Capacity With Class J or Class R fuses: 200,000 A
