Product Model: 1494G-BF3N

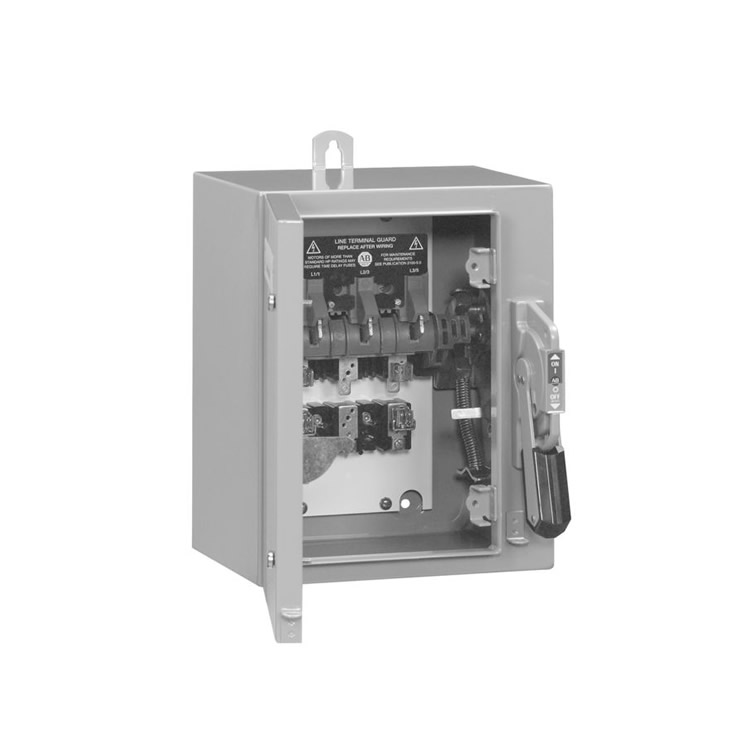

Product Description: Allen-Bradley® 1494G series industrial-grade safety disconnect switch, non-fusible type, with a standard-sized enclosure and a 3-pole, 3-phase design, suitable for environments with Type 3R/4/12 painted metal enclosures.
Electrical Parameters
Parameter Specification
Continuous Rated Current 30 A (600V AC / 250V DC)
Rated Insulation Voltage (Ui) 600V (UL/IEC)
Horsepower Rating (60Hz) 480V AC: 7.5 HP (standard) / 20 HP (maximum)
600V AC: 7.5 HP (standard) / 30 HP (maximum)
250V DC: 5 HP
Maximum IEC Application Power (AC23) 220V/50Hz: 5.5 kW
440V/50Hz: 11 kW
550V/50Hz: 15 kW
Number of Poles 3-pole (3-phase)
Fuse Type Non-fusible
