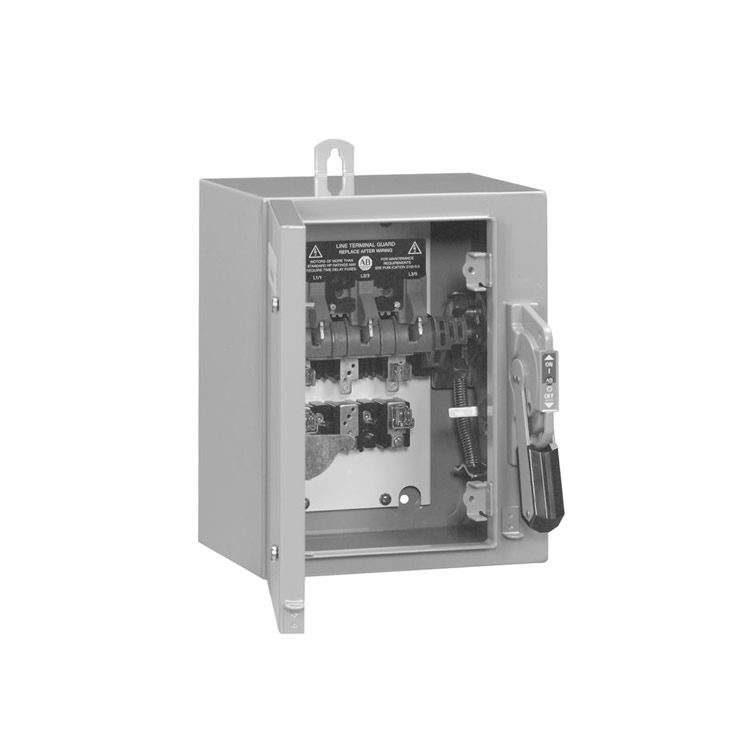

Base Model: 1494G-BF3J6
Description: Industrial safety disconnect switch with a standard-sized enclosure, rated for 600V AC/250V DC and of the fusible type, equipped with Class J fuse clips.
• Rated Current: 30 A
• Number of Poles: 3-pole, 3-phase
• Enclosure Type: Type 3R/4/12 (rainproof, waterproof, dustproof, painted metal enclosure)
• Fuse Type: Class J
• Rated Voltages:
• 600V AC
• 250V DC
• Horsepower Ratings (UL/CSA/NEMA):
• 480V AC, 60 Hz: 5 HP (standard), 15 HP (maximum)
• 600V AC, 60 Hz: 7.5 HP (standard), 20 HP (maximum)
• 250V DC: 5 HP
• kW Ratings (IEC AC23):
• 220V/50 Hz: 5.5 kW
• 440V/50 Hz: 11 kW
• 550V/50 Hz: 15 kW
• Certifications: cULus Listed (File No. E227497; Guide No. WIAX), RoHS
• Standards Compliance: CSA C22.2 No. 4, UL98, UL508
