Product Model: 1494G-BF3J6

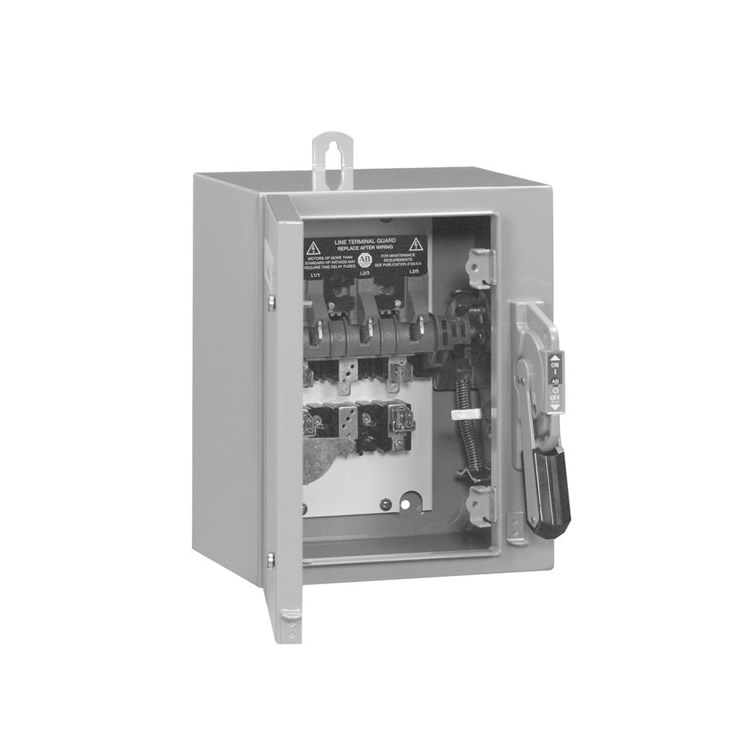

Product Name: Allen-Bradley® 1494G Industrial Safety Disconnect Switch (Standard-sized Enclosure with Class J Fuses)
Product Type: Industrial-grade Safety Disconnect Switch (Fusible Type)
I. Basic Electrical Parameters
Parameter Item Specification Value
Rated Continuous Current 30 A
Rated Voltage (AC) 600 V AC
Rated Voltage (DC) 250 V DC
Number of Poles 3 Poles (3-phase)
Fuse Type Class J
Fuse Rated Voltage 600 V AC / 250 V DC
Enclosure Type Type 3R/4/12 (Painted Metal)
II. Horsepower (HP) and Power (kW) Ratings
UL/CSA/NEMA Applications (60 Hz)
Voltage Level Standard Horsepower (HP) Maximum Horsepower (HP)
480 V AC 5 15
600 V AC 7.5 20
250 V DC 5 -
IEC Applications (50 Hz, AC23 Category)
Voltage Level Maximum Power (kW)
220–240 V AC 5.5
380–440 V AC 11
500–600 V AC 15
