Product Overview

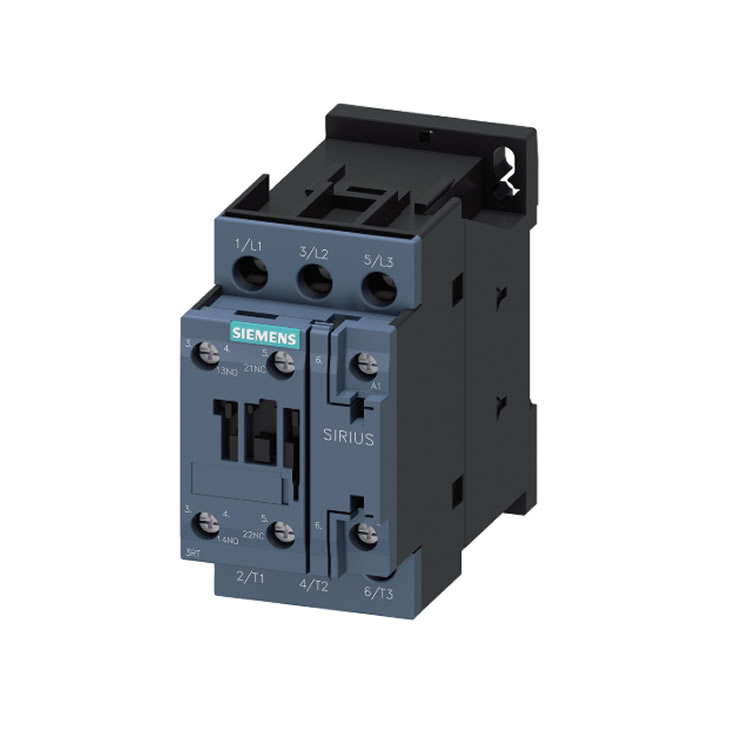

The Siemens 3RT6023-1AN20 contactor is an outstanding electrical component in the field of industrial control, suitable for various complex working conditions.
Product Features
This contactor has a rated current AC-3 of 9A, a coil voltage of 220V AC 50/60Hz, equipped with one normally open and one normally closed auxiliary contact. With a 3-pole design, specification S0, and screw terminals, it is easy to install. Its mechanical life reaches 10 million operations, showing high reliability. In terms of electrical performance, the insulation voltage measurement is 690V, and the impulse withstand voltage capability measurement is 6kV, enabling it to effectively cope with voltage fluctuations and impacts. It also features low power consumption, with a power of only 0.4W during AC hot-state current measurement and a typical no-load current share of 1.97W, achieving significant energy-saving effects. Additionally, it complies with the RoHS directive.
Application Areas
It is commonly used in scenarios such as motor control and power system distribution to ensure the stable operation of electrical systems.
