Product Overview

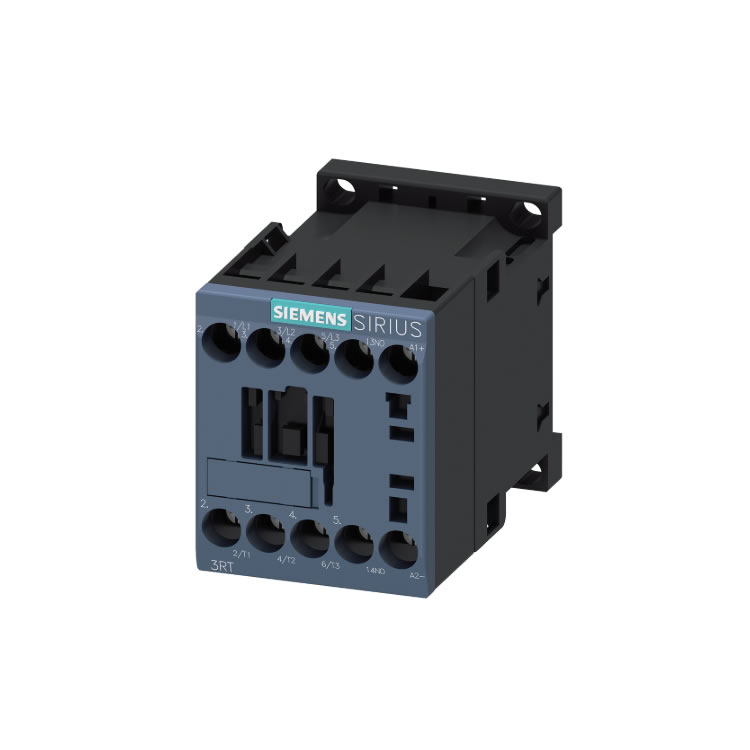

The Siemens 3RT6015-1BB41 contactor is a stable and widely applicable electrical control component suitable for various industrial scenarios.
Product Features
This contactor is controlled by a DC coil with a coil voltage of 24V DC and a rated current AC-3 of 7A. It is equipped with one normally open auxiliary contact, has a 3-pole design, specification S00, and uses screw terminals for easy installation. Its mechanical life reaches 30 million operations (main body without auxiliary contacts), showing high reliability. In terms of electrical performance, the insulation voltage measurement is 690V, and the impulse withstand voltage capability measurement is 6kV, enabling it to effectively cope with voltage fluctuations and impacts in complex electrical environments. It also features low power consumption, with a power of only 0.42W per electrode during AC hot-state current measurement and a typical no-load current share of 4W, achieving significant energy-saving effects. Additionally, it complies with the RoHS directive.
