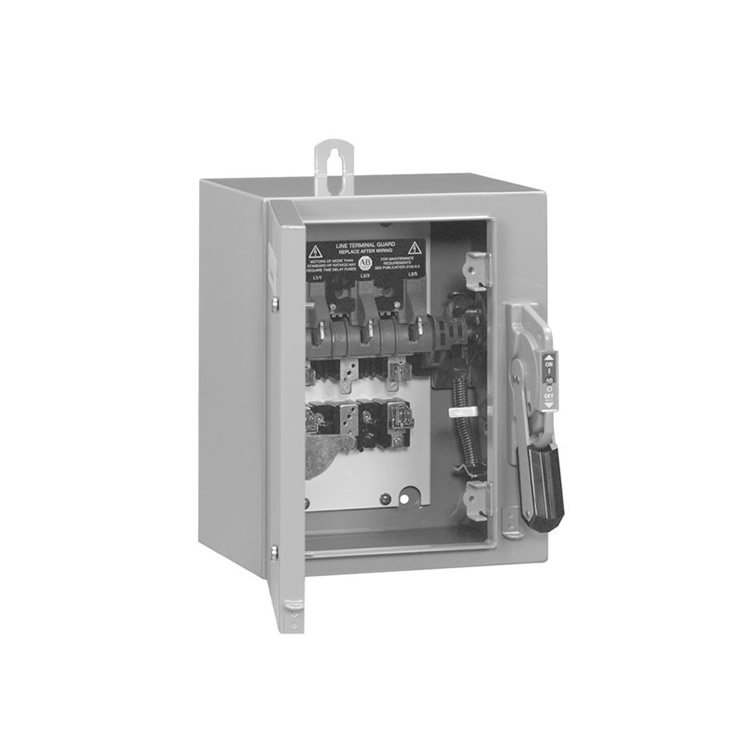

1494G: Industrial Safety Disconnect Switch (Standard-Size Enclosure)
Electrical Specifications
Parameter Value
Rated Current 30A
Maximum Voltage 240V AC / 250V DC
Maximum Horsepower for Single-Phase Applications (240V) Standard: 1.5 HP, Maximum: 3 HP
Maximum Horsepower for Three-Phase Applications (240V) Standard: 3 HP, Maximum: 7.5 HP
DC Application (250V DC) 5A
Fuse Type Class H
Mechanical and Structural Characteristics
• Enclosure Type: Type 3R/4/12 metal painted enclosure with screw fasteners and a non-metallic handle
• Visible Blade Design: Provides visual indication of safe on/off status
• Handle Linkage: Complies with NFPA 79 standards; the handle is always linked to the switch
• Mounting Method: Flange mounting (right-hand operation)
• Optional Accessories: Auxiliary contacts, electrical interlocks, observation windows, etc., can be added
