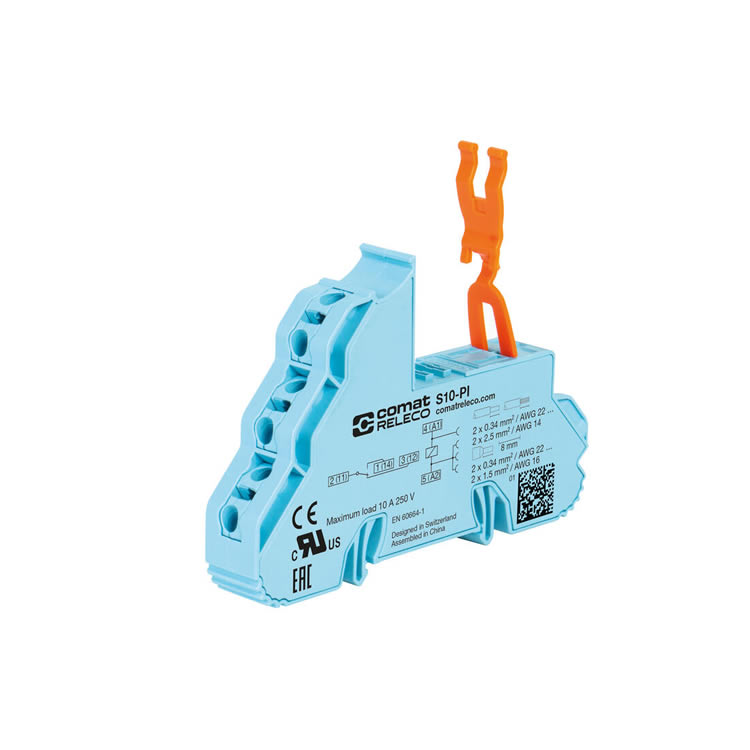

Socket IRC 5 PIN DIN RAIL
Art: S10-PI
The New ComatReleco Push-in socket family is now available and offers a compact space saving alternative to screw terminal base.
The range features:
25% space saving compared to other brands
For single wire and stranded wire (un-crimped / crimped)
Wire cross section range 0.34 mm² / AWG 22 to 2.5 mm² / AWG 14
2 wires per pole
Snap-in mechanism for 11 mm marking strip
Tool free mounting and removal from TS35 DIN Rail
Insertion tool for quick and easy wiring

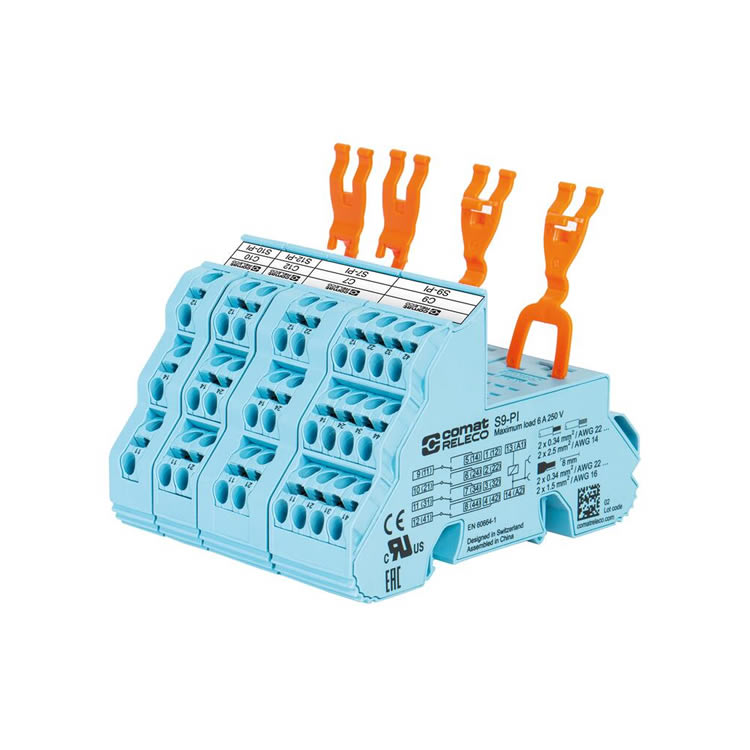

8 pin S7 and 14 pin S9 relay sockets
5 pin S10 and 8 pin S12 relay sockets
25% space saving
Time saving installation
