Product Description

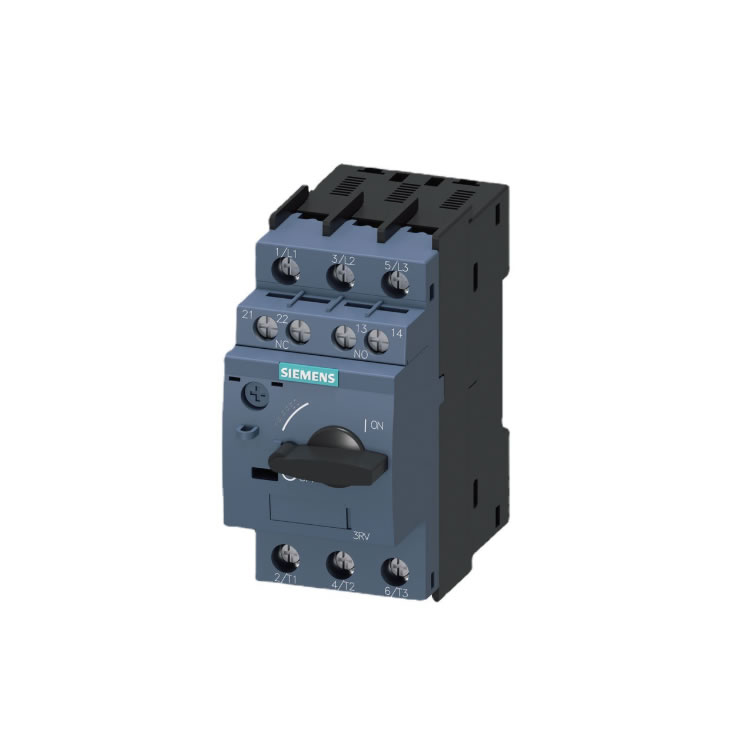

Siemens 3RV6011-1KA15 circuit breaker is an electrical device specifically designed for motor protection. It has sensitive motor overload and short-circuit protection functions, which can act quickly when abnormal current occurs in the motor, cut off the circuit, prevent motor damage, and ensure stable motor operation in a safe environment.
Product Parameters
Type: Motor overload and short-circuit protection; Specification: S00 (45mm wide); Rated current (AC-3): 12.5A; Current setting range: 9 - 12.5A; Breaking capacity Icu (KA): 100kA; Load class: [Tripping class CLASS10]; Poles: 3; Auxiliary contact: With laterally installed 1NO + 1NC auxiliary contact; Wiring method: Screw terminal; Mechanical life: 100,000 times; Electrical life: 100,000 times; Frame-size rated current: Max 16A.
Product Application
Widely used in motor protection in the industrial field, such as motor control and protection in various mechanical equipment and production lines.
