Product Description

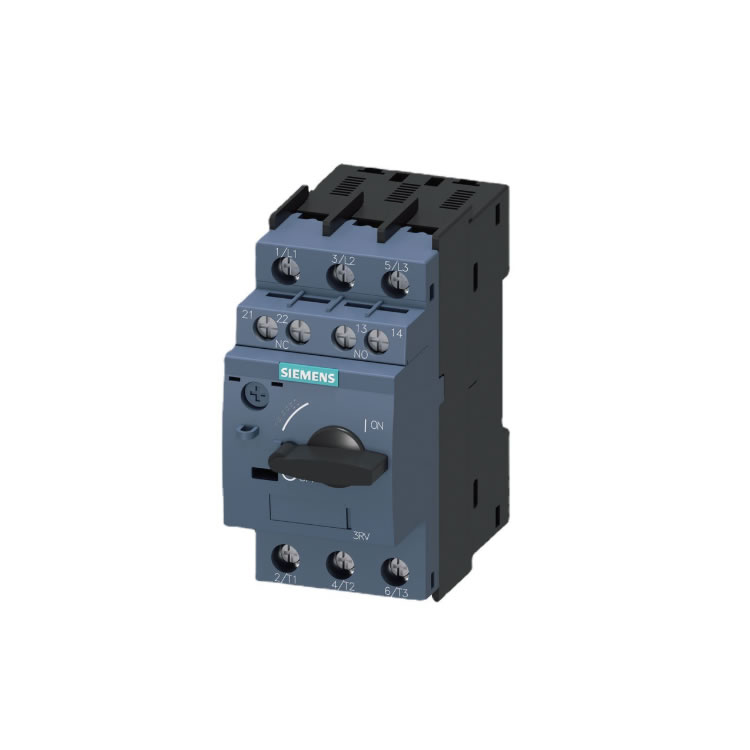

Siemens 3RV6011-1HA15 circuit breaker is a top - quality choice in the field of motor protection. It is specifically designed to handle motor overload and short - circuit conditions, featuring rapid response and precise protection. When abnormal current occurs in the motor, this circuit breaker can quickly cut off the circuit, effectively preventing motor damage due to overload or short - circuit and providing reliable protection for stable motor operation.
Product Parameters
Type: Motor overload and short - circuit protection; Specification: S00 (45mm wide); Rated current (AC - 3): 8A; Current setting range: 5.5 - 8A; Breaking capacity Icu: 100kA; Load class: [Tripping class CLASS10]; Poles: 3; Auxiliary contact: With laterally installed 1NO + 1NC auxiliary contact; Wiring method: Screw terminal; Mechanical life: 100,000 times; Electrical life: 100,000 times; Frame - size rated current: Max 16A.
Product Application
Widely applied in various motor protection scenarios in industrial production, such as machinery manufacturing and automation equipment fields.
