Product Description

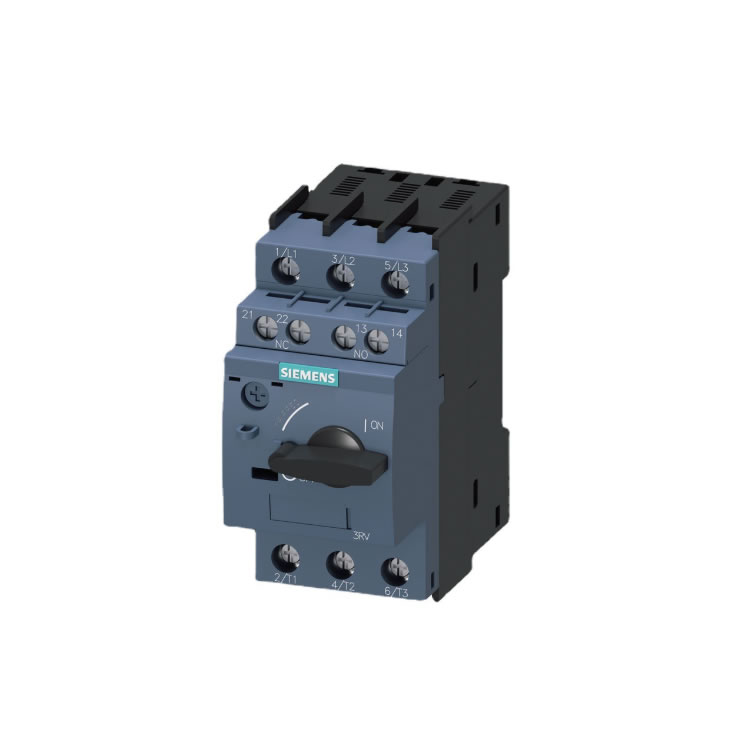

Siemens 3RV6011-0KA15 circuit breaker is a professional choice in the field of motor protection. It focuses on motor overload and short - circuit protection, with precise current sensing and rapid response capabilities. Once abnormal current conditions occur in the motor, this circuit breaker can immediately cut off the circuit, effectively preventing motor damage due to overload or short - circuit and building a strong safety line for stable motor operation.
Product Parameters
Type: Motor overload and short - circuit protection; Specification: S00 (45mm wide); Rated current (AC - 3): 1.25A; Current setting range: 0.9 - 1.25A; Breaking capacity Icu: 100kA; Load class: [Tripping class CLASS10]; Poles: 3; Auxiliary contact: With laterally installed 1NO + 1NC auxiliary contact; Wiring method: Screw terminal; Mechanical life: 100,000 times; Electrical life: 100,000 times; Frame - size rated current: Max 16A.
Product Application
Suitable for small motor protection in various industrial scenarios, such as small mechanical equipment and automation devices.
