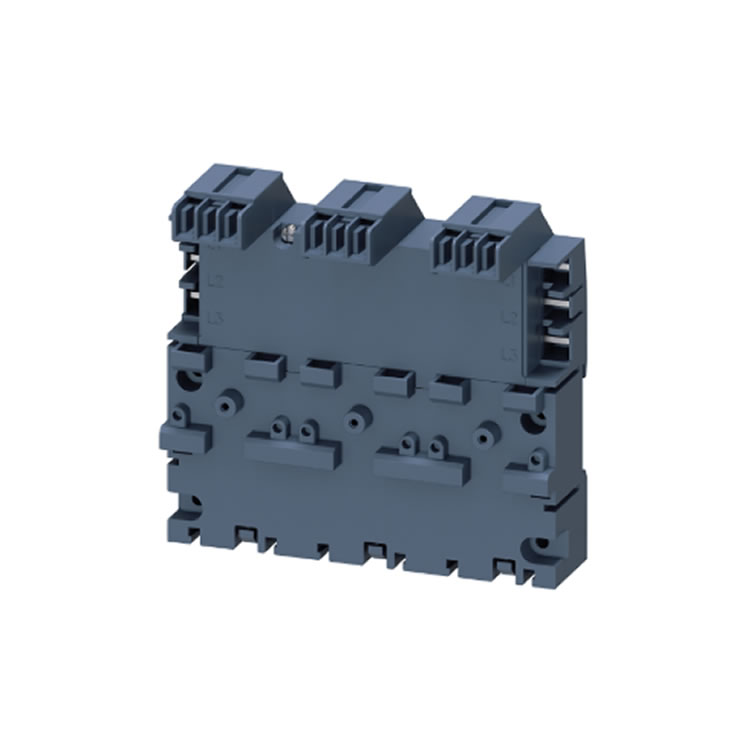

The Siemens 3RV2917-4B three-phase busbar is a busbar product designed for three switches, belonging to the 3RV29 series.
In terms of comprehensive technical data, it has multiple certifications including CE, UL, CSA, and CCC. The circuit breaker structure size is S00,50. During AC current measurement and hot operation, the power loss per pole is 7.24W, with a pole-related square calculation type. Its impulse withstand voltage capacity is 6kV, protection rating is IP20, and thermal current is 63A. Weighing 440g, its measured AC working voltage is 500V, working current is 63A, and the UL/CSA rated AC working voltage meets the UL measured value of 600V.
It is suitable for an ambient temperature range of -20...+60°C during operation. With touch protection and short-circuit stability, it can be installed flexibly on 35mm mounting rails and has reasonable dimensions, making it a reliable choice for circuit connections.
