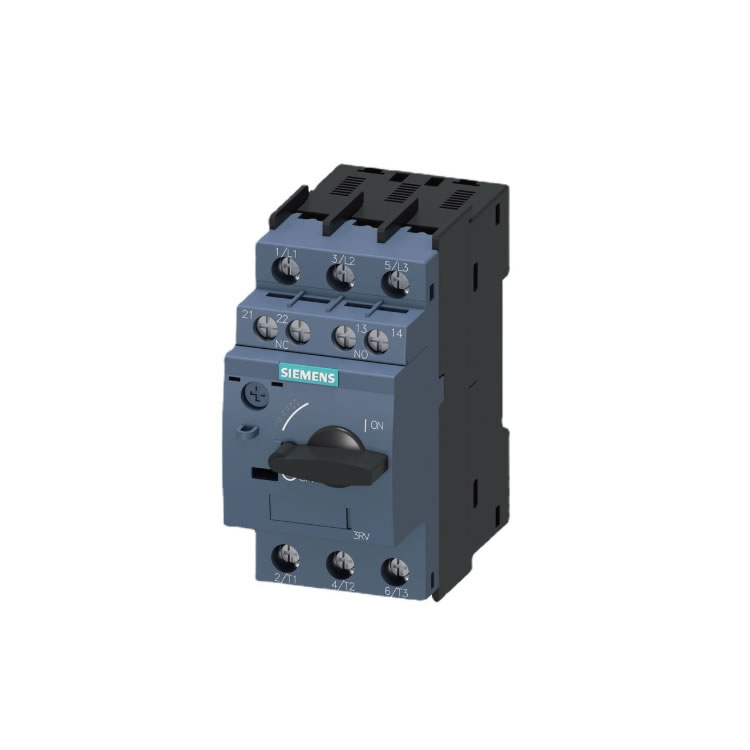

The Siemens 3RV6011-0EA15 circuit breaker is an electrical component specifically designed for motor overload and short-circuit protection.
With a specification of S00 (45mm wide), its rated current (AC-3) is only 0.4A, current setting range is 0.28 - 0.4A, breaking capacity Icu (KA) is up to 100kA, load class is [Tripping Class CLASS10], and it has 3 poles. It comes with laterally mounted 1NO + 1NC auxiliary contacts and uses screw terminals for wiring. Both its mechanical life and electrical life reach 100,000 times, and the maximum frame-level rated current is 16A.
This circuit breaker is suitable for protecting low-power motors. With its precise current setting range and high breaking capacity, it can effectively ensure motors operate within safe current limits and prevent damage caused by overload or short-circuit, providing reliable protection for low-power motor systems.
