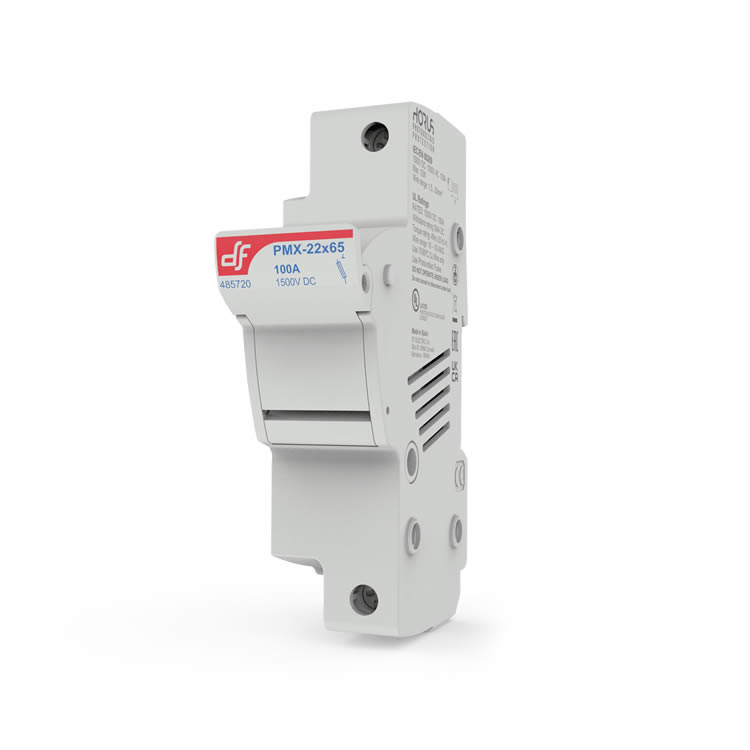

Modular fuse holders that offer 1500V DC rated voltages
Modular fuse holder for cylindrical fuse link size 22x65 according
IEC/EN 60269 standard.
Compact design, with reduced dimensions.
Ventilation zones optimized for a better heat dissipation.
Manufactured with a high quality materials
· Silver plated copper contacts.
· Plastic materials with high temperature resistance and
self-extinguishable.
· All the materials are according to the European Directive RoHS.
Technical data
Rated current 100A
Rated voltage 1000V AC | 1500V DC
Maximum power dissipation 12W
Power dissipation per pole 50% In 1,48W
80% In 1,82W
100% In 2,81W
Pollution degree 3
Protection index * IP20
Rated impulse withstand voltage 8kV U imp
Withstand rating 30kA DC
Ambient temperature of service -40°C ... 70°C
(with carrier operation)
-50°C ... 80°C
(without carrier operation)
Storage temperature -50°C ... 80°C
