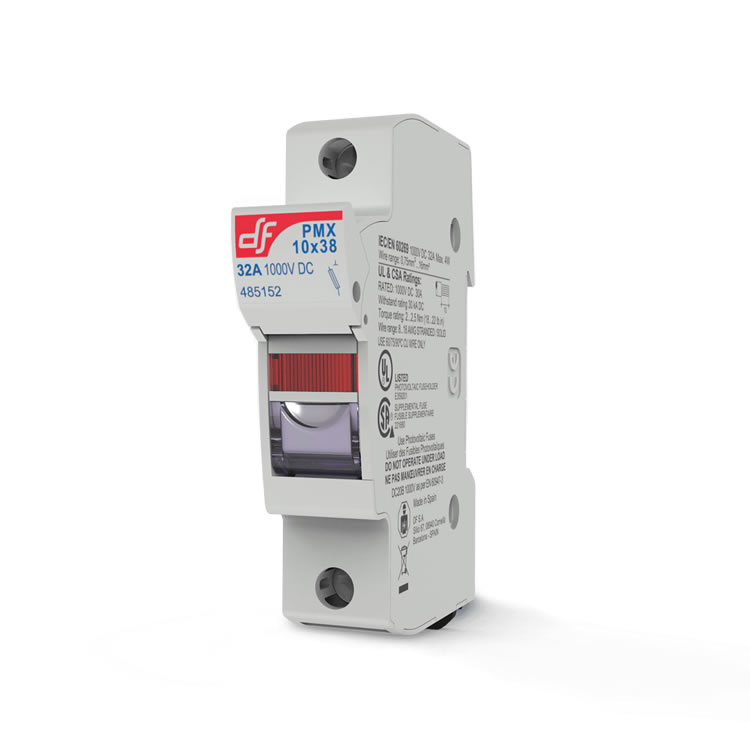

Modular fuse holders that offer 1000V DC rated voltages
Modular fuse holder for cylindrical fuse link size 10x38 according
IEC/EN 60269 standard.
Compact design, with reduced dimensions.
Ventilation zones optimized for a better heat dissipation.
Manufactured with a high quality materials
· Silver plated copper contacts.
· Plastic materials with high temperature resistance and
self-extinguishable.
· All the materials are according to the European Directive RoHS.
Technical data
| Rated current | 32A |
| Rated voltage | 690V AC | 1000V DC |
| Maximum power dissipation | 4W |
| Power dissipation per pole | 80% In 100% In |
| Pollution degree | 3 |
| Protection index * | IP20 |
| Rated insulation voltage | 6kV U imp |
| Ambient temperature of service | -40°C ... 70°C (with carrier operation) -50°C ... 80°C (without carrier operation) |
| Storage temperature | -50°C ... 80°C |
