Product description

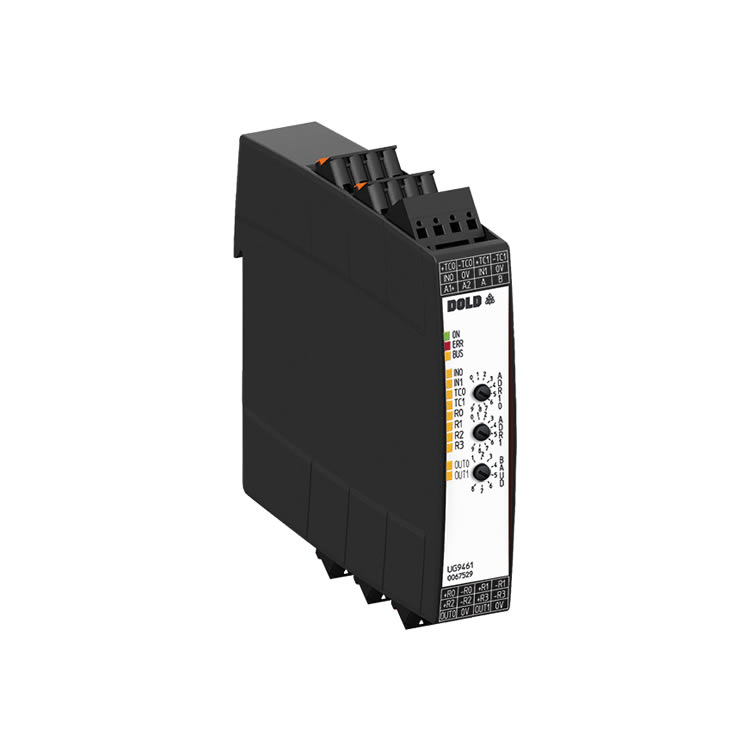

The universal Input / Output module UG 9461 has analogue inputs and 2 analogue outputs. It can be used to connect thermocouples and thermistors and offers 2 configurable measuring inputs 0-10V or 0-20mA. Via Modbus the input status can be read and the output status can be set. For the analogue outputs a DC 01 ... 10 V interface is available
Technical specifications
Type: UG 9461
Width: 22,5 mm
Number of inputs/outputs: 8 analogue inputs, 2 analogue outputs
Bus interface: Modbus RTU
Enclosure design: Switch cabinet
Advantages
Widely used measuring and automation protocol
Compact structure
Easy installation
Easy appliance
Pluggable clamps
TWIN- connection terminals to loop auxiliary supply and Bus
Features
According to IEC/EN 61131-2
Modbus RTU-interface
2 configurable analogue inputs: 0 … 10 V, 0… 20 mA
2 K-Thermal element inputs
4 Thermistor inputs for Pt1000 sensors
2 Analogue outputs: 0 … 10 V
3 potentiometer for setting the modbus adress and baud rate
13 LEDs for status indication
Width: 22.5 mm
