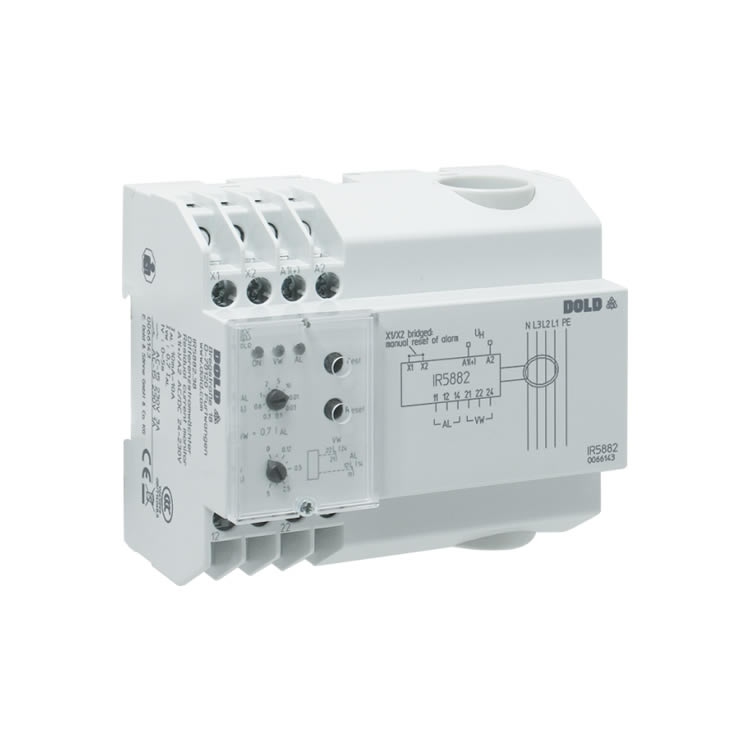

The residual current monitor IR 5882 of the VARIMETER RCM series is used for early detection of insulation faults and detects residual currents with alternating currents and pulsating direct currents in earthed systems (type A). The residual current measurement is carried out via an integrated current transformer. In contrast to the residual current circuit breaker, the residual current monitor IR 5882 does not immediately switch off the mains when a fault is detected, but only indicates the fault. LEDs indicate operational readiness, pre-alarm and alarm. Other features include a check and delete function. The IR 5882 residual current monitor thus offers an information advantage for targeted and cost-effective maintenance measures before the system comes to a standstill.
Features
• According to IEC/EN 62 020
• for AC and pulsating DC currants Type A to IEC/TR 60755
• 9 tripping values from 10 mA to 10 A or from 10 mA ... 30 A
• Frequency range 20 ... 2000 Hz
• Selection of manual or automatic reset
• With prewarning
• With test and reset button
• Broken wire detection
• Short reaction time
• With adjustable delay tv
• De-energized on trip
• LED indication for auxiliary supply and state of contact
• 2 x 1 changeover contact
• With sealable cover
• Devices available in 3 enclosure versions:
IR 5882: 63 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 88
- width 105 mm
- with internal residual current transformer
