Product description

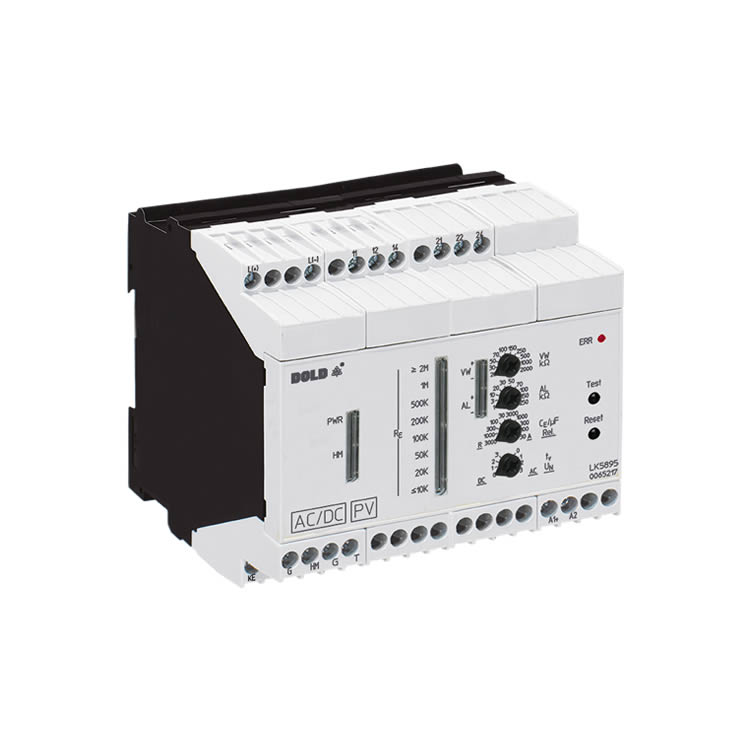

The insulation monitor LK 5895 of the VARIMETER IMD family is a solution for optimal insulation monitoring of modern IT systems. The device can be used in the most flexible way for AC, DC and AC/DC systems even with large leakage capacity to earth (PE). The adjustment of the setting values is simple and user friendly done on 2 rotary switches on the front of the device. Via LEDs the measured value, device parameters and device status are indicated easy to read.
Technical specifications
| Width: | 90 mm |
| Classification: | For photovoltaic systems |
| Response value: | 1 - 250 kΩ |
| IMD type: | AC, DC, AC/DC |
| Nominal voltage IT system: | AC 0 - 1000, DC 0 - 1000 V |
| Auxiliary voltage: | DC |
| Earth fault indicator: | Yes |
| Approvals: | UL |
| Response value type: | Adjustable |
| Enclosure design: | Switch cabinet |
| Type: | LK 5895 |
