Do you know that you're capable of setting up light curtains and barriers on your own? We'll walk you through the steps.

WHAT IS LIGHT CURTAIN OR LIGHT BARRIER?

A light curtain or light barrier, also often referred to as safety light curtains, act like an invisible  fence, designed to protect people from coming into contact with dangerous machines or moving parts. They are photoelectric safety devices which provide protection from hazardous machinery and are capable of monitoring large areas.

Light curtains consist of a transmitter and receiver. From the transmitter, infrared beams are transmitted to the receiver. When one or more of the light beams are interrupted, a dual output stop signal is given to stop the dangerous action of the machine.

HOW TO SET UP A LIGHT CURTAIN OR LIGHT BARRIER

Alignment between the transmitter and receiver is necessary for the light curtain to function properly. Good alignment prevents instability of the output caused by dust or vibrations. The alignment is perfect if the optical axes of the first and last beams of the transmitter coincide with the optical axes of the receiver. The beam used to synchronise the two units is the one closest to the bottom. SYNC is the optic connected to this beam and LAST is the optic connected to the last beam after the SYNC unit.

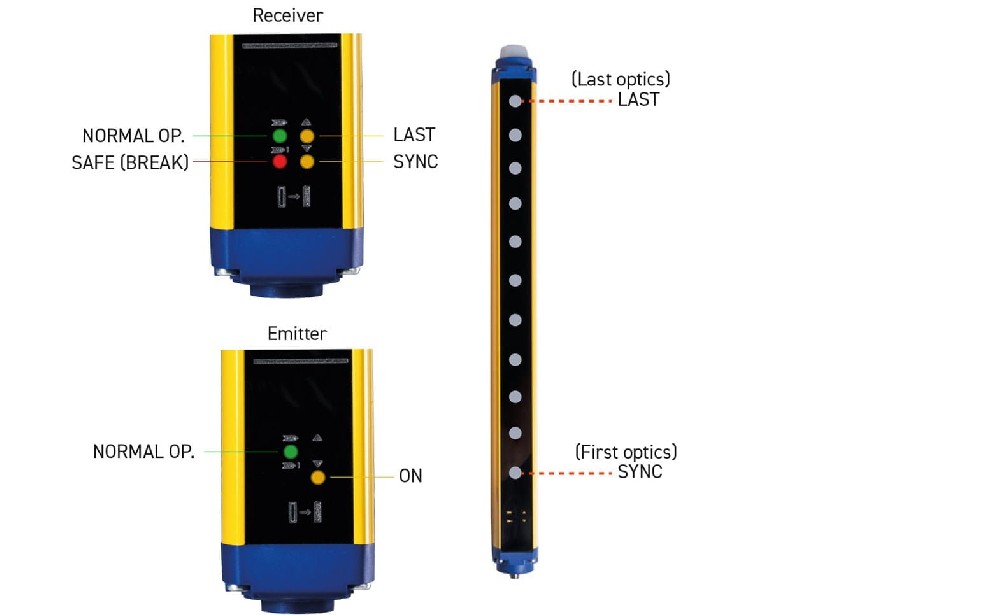

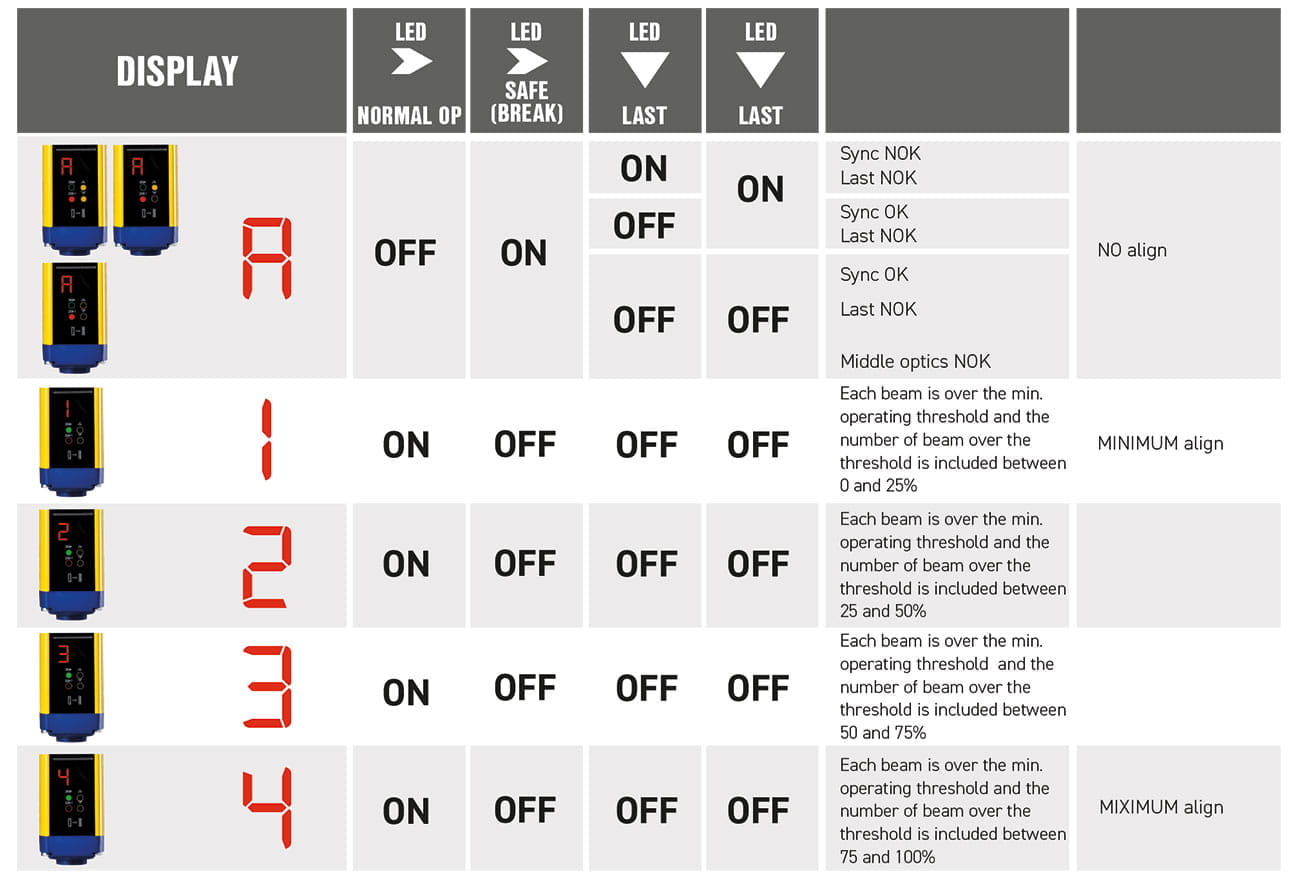

The LED indications are clearly identified with symbols for easy reading directly on the receiver. A brief description of the LED indications is necessary to avoid misunderstandings. Two yellow LEDs (LAST and SYNC) on the receiver facilitate the adjustment procedure.

CORRECT ALIGNMENT PROCEDURE

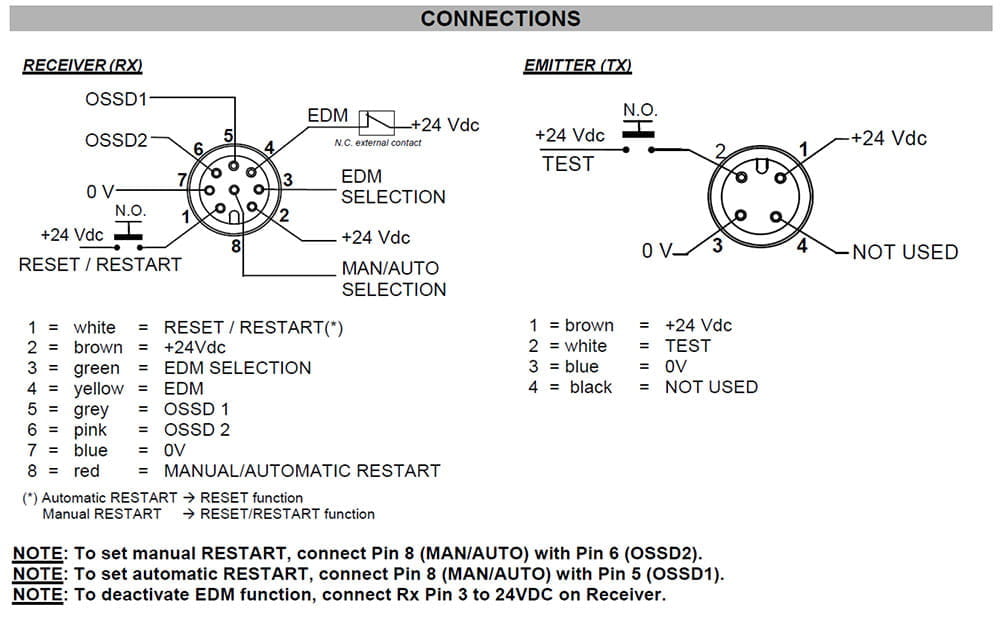

The alignment adjustment can only be performed after the mechanical installation and electrical connections have been completed. Then follow the procedure below:

NOTE : The system that informs the user of the obtained alignment is located on the receiver. The alignment function can be activated when the unit is turned on by keeping the normally open RESET/RESTART switch closed for at least 0.5 seconds.

A. Fix the receiver in a stable position and adjust the transmitter until the yellow LED (SYNC) is OFF. This indicates the correct alignment of the first beam (synchronization beam).

1. Rotate the transmitter, swinging on the last optical axis, until the yellow LED (LAST) is OFF. NOTE: Make sure the green LED (NORMAL OP.) is constantly lit.

2. Define the area where the green LED (NORMAL. OP) is lit steadily by making some micro adjustments - for the first and then for the second unit - to obtain maximum alignment (4) and then place both units in the center of this area.

3. Secure the two units securely with the brackets. Verify that the green LED (NORMAL OP) on the RX unit is ON and the beams are not broken. Then verify that the red LED lights up if a single beam is interrupted SAFE (BREAK). This verification should be done with a cylindrical “test piece” of a size appropriate to the resolution of the unit.

4. Turn the power supply to the unit OFF and ON to return to normal mode.
