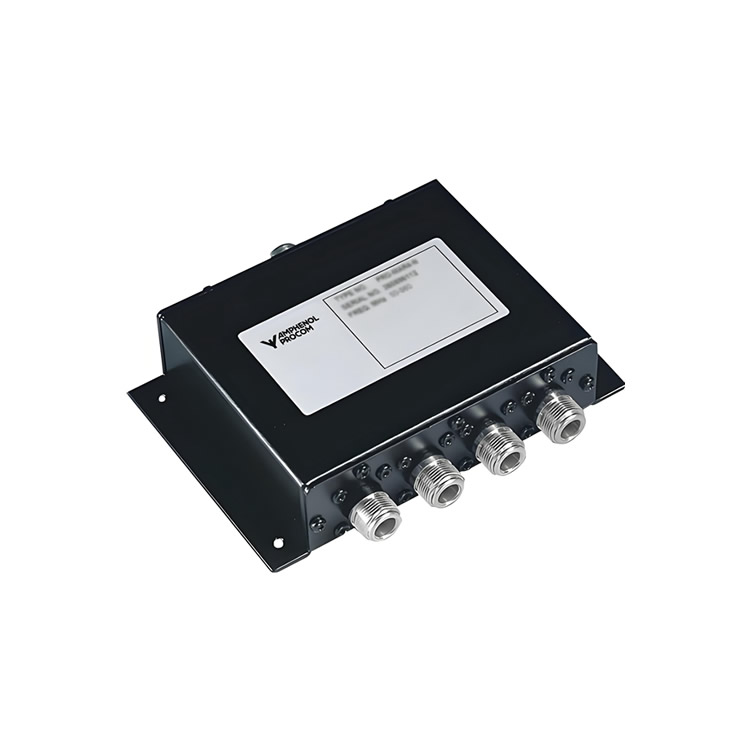

Model: PRO-PDI4-40-800-6 dB-10W-N
Frequency Range: 40 - 800 MHz
Maximum Input Power: 10 W
Impedance: 50 Ω
Input VSWR: < 2.0:1
Nominal Divider Loss: 6.1 dB
Total Loss Including Nominal Loss: ≤ 6.70 dB @ 40 MHz
≤ 9.50 dB @ 800 MHz
Isolation Between Outputs: > 9 dB
Connector Type: N (female)
Dimensions: 129 mm (including connector) × 152 mm (including flange) × 35 mm
Weight: 0.36 kg / 0.79 lb.
