Article no.: SK 3139100
The new generation of roof-mounted fans is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP54.
Article no.: SK 3139100
Design: roof-mounted

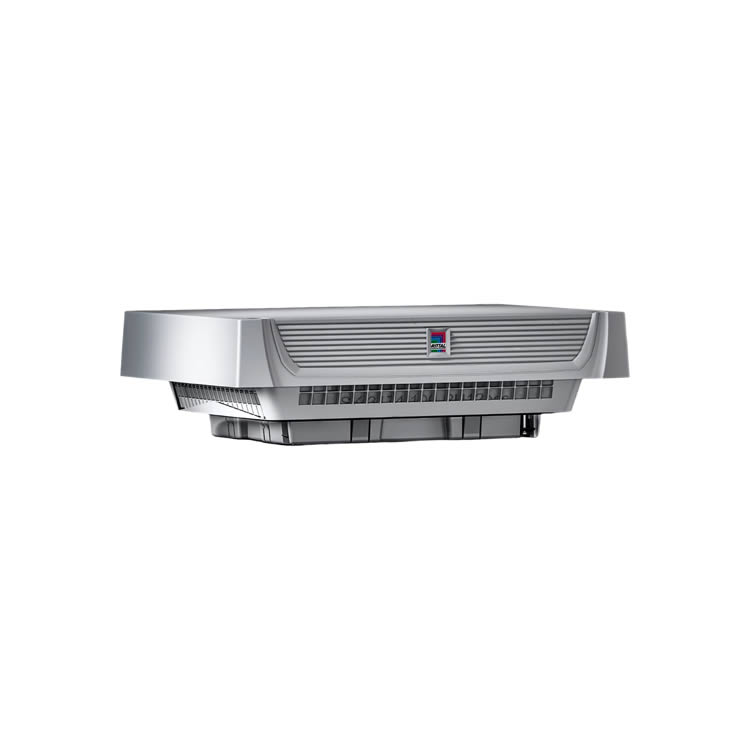

Product description: Roof-mounted fan with a high protection category and flexible installation from the inside or outside.
Material: Plastic ABS
Colour: RAL 7035
Supply includes: Complete unit ready to install, including pleated filter
Fan: Radial, capacitor motor
Air throughput, unimpeded airflow (with pleated filter):
At 50 Hz: 474 m³/h
At 60 Hz: 514 m³/h
Air flow (without filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat:
1 x 3243300: 360/373 m³/h
Air flow (with pleated filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat:
1 x 3243300: 360/382 m³/h
2 x 3243300: 410/440 m³/h
Air throughput, unimpeded air flow (without filter mats):
At 50 Hz: 500 m³/h
At 60 Hz: 525 m³/h
Rated operating voltage: 220 V - 240 V, 1~, 50 Hz/60 Hz
Power consumption Pel:
At 50 Hz: 51 W
At 60 Hz: 62 W
Rated current max.:
At 50 Hz: 0.23 A
At 60 Hz: 0.27 A
Dimensions:
Width: 400 mm
Height: 133 mm
Depth: 400 mm
Installation depth:
34.6 mm
Mounting cut-out:
Cut-out width: 258 mm
Cut-out depth: 258 mm
IP protection category to IEC 60 529
IP 21 without filter mat
IP 54 including pleated filter
Protection category NEMA
NEMA 12
Pre-fuse
Miniature circuit-breaker/fuse: 3 A
Note
A chopped-fibre filter filter may optionally be used to increase the protection category to IP 55 (see accessories).
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
Service life of fans (L10, 40 °C)
At 50 Hz: 69,000 h
At 60 Hz: 67,600 h
Operating temperature range: -20 °C...55 °C
Storage temperature range: -40 °C...70 °C
Noise level:
At 50 Hz: 52 dB(A)
At 60 Hz: 54 dB(A)
Packs of: 1 pc(s).
Net weight: 5.16 kg
Gross weight: 5.66 kg
