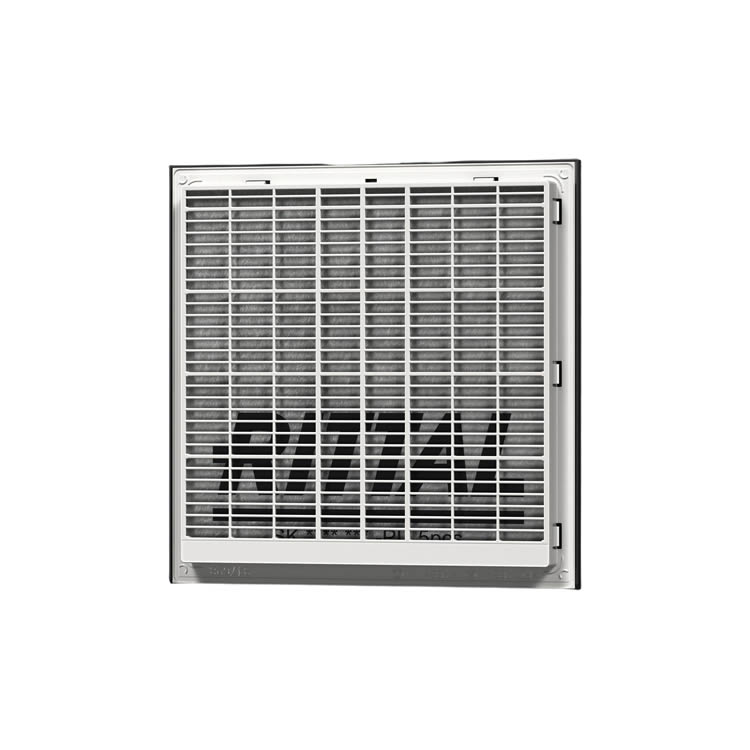

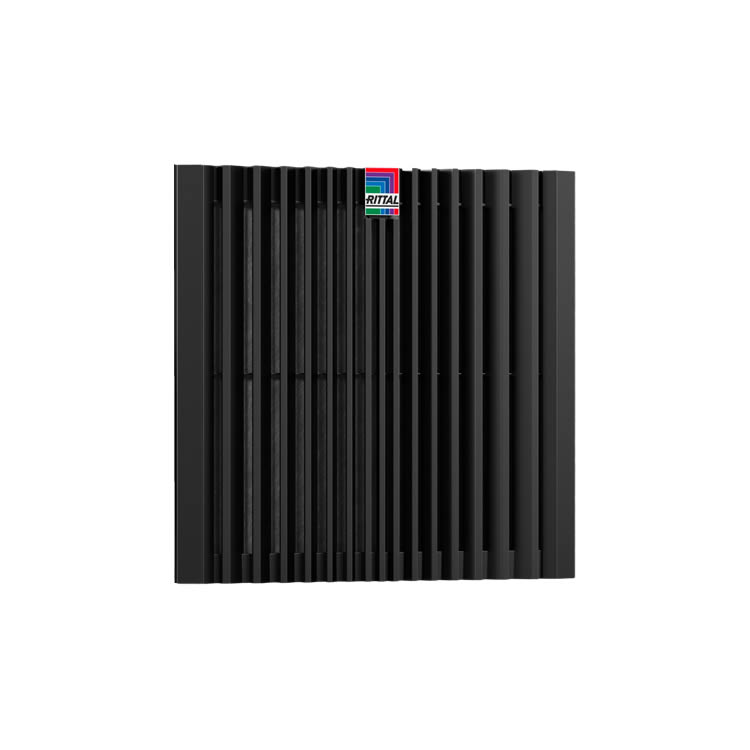

The outlet filter is used in conjunction with the corresponding fan-and-filter unit to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved through the direct infeed of ambient air, the temperature of which must be lower than the permissible internal temperature of the enclosure.
Article no.: SK 3237300
Design: wall-mounted
Benefits: Easy filter changes, thanks to a new opening mechanism on the louvred grille
Faster installation on the enclosure with optimised detent hooks
Tool-free assembly
Material: Plastic
Colour: RAL 7035
Supply includes: Outlet filter
Chopped-fibre filter mat
Mounting cut-out
Cut-out width: 92 mm
Cut-out height: 92 mm
To fit Model No.: SK 3237.7xx
Dimensions:
Width: 116.5 mm
Height: 116.5 mm
Depth: 33.2 mm
Protection category NEMA
Type 12 with chopped-fibre filter
Type 3, 3R with chopped-fibre filter and hose-proof hood
IP protection category to IEC 60 529
IP 54 with chopped-fibre filter
IP 56 with chopped-fibre filter and hose-proof hood
Packs of: 1 pc(s).
Net weight: 0.12 kg
Gross weight: 0.155 kg
