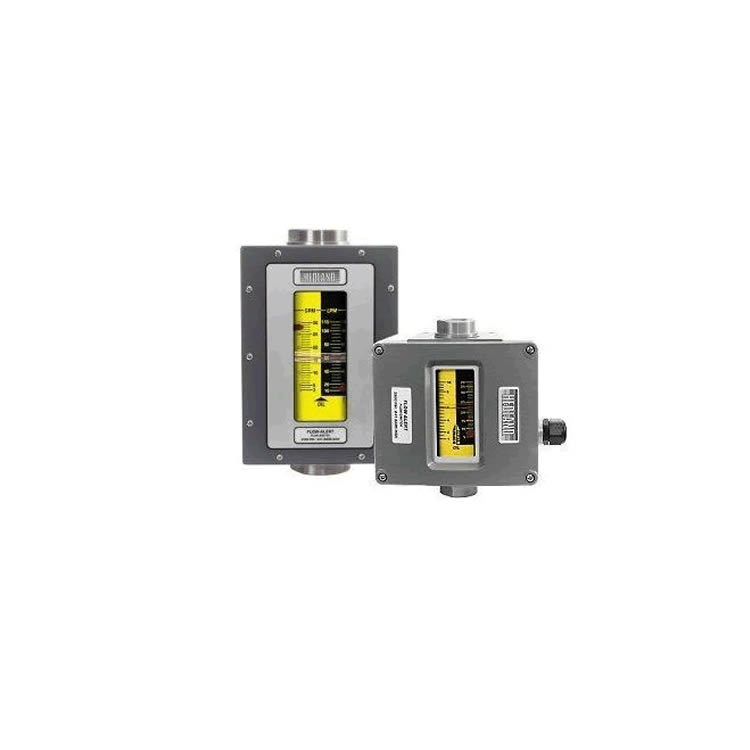

Hedland HP602A-002-F1 Flow Meter
The Hedland flow meter is a variable area (rotameter) instrument. A precision machined sharp orifice plate is located within the piston assembly and forms an annular opening with the corrugated metering cone. The piston assembly carries a cylindrical PPS/ceramic magnet which is magnetically coupled to an external flow indicator which moves precisely in direct response to piston movement. A calibrated spring reverses forward flow. This spring reduces viscosity sensitivity and allows the flow meter to be used in any position, including inverted.
Features
Mounts in any position
360° rotatable guard/scale
No electronics required to obtain a reading
No rectifier or special piping required
Less sensitive to shock and vibration
Magnetic coupling eliminates mechanical connections that can wear, loosen and leak over the life of competitive meters
Temperatures up to 116°C
Maximum pressures to 241 bar
Accuracy ±7% full scale
Repeatability +/- 1%
Custom scale options to meet exact application requirements
Application Examples
Hydraulic power units
Gearboxes
Test benches
Bearing lubrication flow monitoring
Hydraulic linear positioning
Mineral oils
Hydraulic tools and components
Power steering analysis
Transmission oil analysis
Mobile construction equipment
Gasoline, kerosene, methanol flow monitoring
