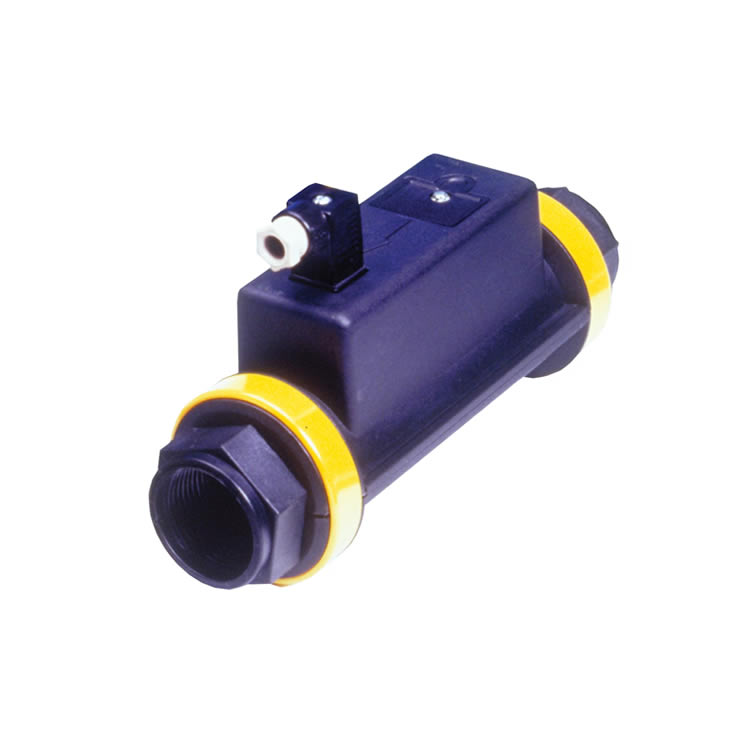

Parker DFT990 Flow Transmitters
An extensive range of flow metering products. Dataflow 4-20mA and pulse output flow transmitters and the Dataflow Compact inline flow transmitter for reading up to 150 LPM.
Technical Specifications
Signal Output: 4-20mA Brand: Parker Division: Hydraulic & Industrial Process Filtration Division EMEA Industry: General Industrial, Industrial Manufacturing Equipment, Chemical Processing Technology: Hydraulics Product Type: Condition Monitor Product Style: Flow Meter For Fluid Type: Oil, Water Flow Rate: 1 to 150 L/min Operating Pressure: 10 bar, 145 psi Operating Temperature: Oil: 5 to 80 °C, Water: 5 to 60 °C, Oil: 41 to 176 °F, Water: 41 to 140 °F Minimum Fluid Temperature: Oil: 5 °C, Water: 5 °C, Oil: 41 °F, Water: 41 °F Maximum Fluid Temperature: Oil: 80 °C, Water: 60 °C, Oil: 176 °F, Water: 140 °F Port Size: 3/8 inch Port Type: BSP Electrical Requirements: 24 VDC Communication Interface: DIN 43650 Specifications Met: Pressure Directive Sensing Method: Pulse Totaliser, Infra-red Accuracy: +/- 2% FSD Materials of Construction: Borosilicate Glass Tube, Grilamid - TR55 Length: 196 mm Height: 106 mm Width: 60 mm Seal Material: Nitrile Body Material: Glass filled nylon
