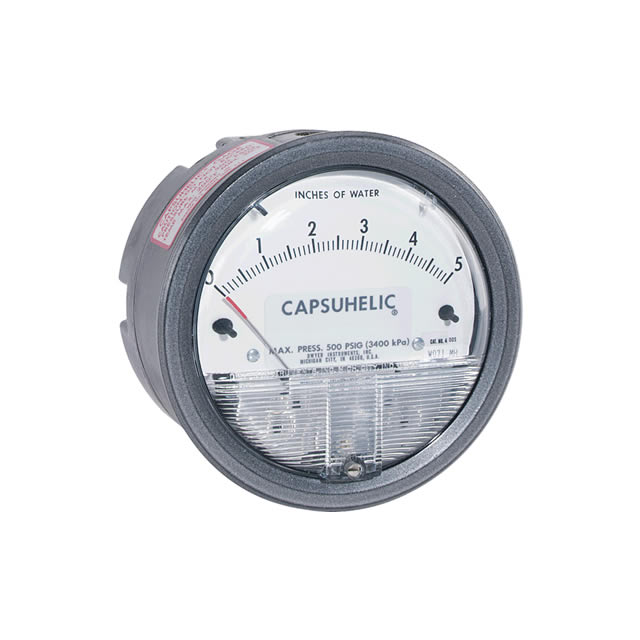

Dwyer Series 4000 Capsuhelic® Differential Pressure Gage 4020
Measures Pressure, Vacuum or Differential, Suitable for Internal Pressures to 500 psig
The Series 4000 Capsuhelic® Differential Pressure Gage is designed to give fast, accurate indication of differential pressures. The gage may be used as a readout device when measuring flowing fluids, pressure drop across filters, liquid levels in storage tanks and many other applications involving pressure, vacuum or differential pressure. The pressure being measured is held within a capsule which is an integral part of the gage. This containment of the pressure permits the use of the gage on system pressures of up to 500 psig, even when differentials to be read are less than 0.1 in w.c.
Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
NIST CALIBRATION available in Product Configurator.
Product Applications
Fluid flow
Liquid storage tanks
Filter pressure drops
Vacuum or differential pressure
| Model | Description |
|---|---|
| 4000-0 | Differential pressure gage, range 0-0.5" w.c., for vertical scale position only. |
| 4001 | Differential pressure gage, range 0-1.0" w.c., for vertical scale position only. |
| 4002 | Differential pressure gage, range 0-2.0" w.c., for vertical scale position only. |
| 4003 | Differential pressure gage, range 0-3.0" w.c., for vertical scale position only. |
| 4004 | Differential pressure gage, range 0-4.0" w.c., for vertical scale position only. |
| 4005 | Differential pressure gage, range 0-5.0" w.c., for vertical scale position only. |
| 4006 | Differential pressure gage, range 0-6.0" w.c. |
| 4008 | Differential pressure gage, range 0-8.0" w.c. |
| 4010 | Differential pressure gage, range 0-10" w.c. |
| 4015 | Differential pressure gage, range 0-15" w.c. |
| 4020 | Differential pressure gage, range 0-20" w.c. |
| 4025 | Differential pressure gage, range 0-25" w.c. |
| 4030 | Differential pressure gage, range 0-30" w.c. |
| 4040 | Differential pressure gage, range 0-40" w.c. |
| 4050 | Differential pressure gage, range 0-50" w.c. |
| 4060 | Differential pressure gage, range 0-60" w.c. |
| 4080 | Differential pressure gage, range 0-80" w.c. |
| 4100 | Differential pressure gage, range 0-100" w.c. |
| 4150 | Differential pressure gage, range 0-150" w.c. |
| 4200 | Differential pressure gage, range 0-200" w.c. |
| 4300 | Differential pressure gage, range 0-300" w.c. |
| 4400 | Differential pressure gage, range 0-400" w.c. |
| 4500 | Differential pressure gage, range 0-500" w.c. |
