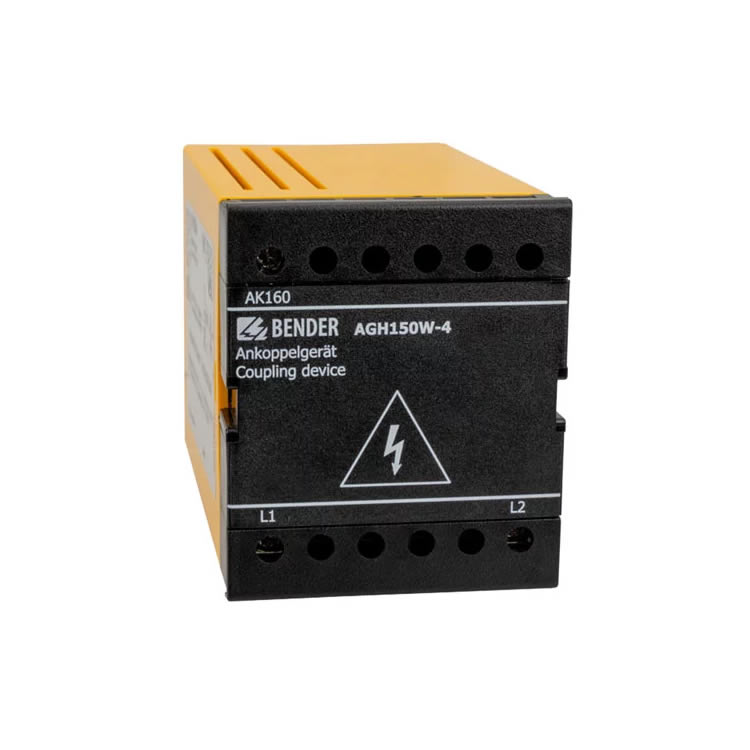

Bender AGH150W-4 Coupling Device
1. Product Overview
Model: Bender AGH150W-4 (Specialized Signal Coupling Device)
Type: Signal Coupling Device for Insulation Monitoring System
Product Series: Bender AGH100 Series Couplers
Core Function: Realize signal coupling between insulation monitor and circuit under test in IT system
2. Technical Characteristics
Electrical Parameters:
Rated Voltage: 690V AC/1000V DC
Frequency Range: 0-400Hz
Coupling Impedance: 150kΩ (Typical Value)
Safety Isolation:
Reinforced Insulation Design (Compliant with IEC 60664-1)
Isolation Voltage: 4kV AC (1 minute)
3. Mechanical Characteristics
Installation Method:
35mm DIN Rail Installation
Compact Design (72x90x60mm)
Connection Method:
Screw Terminal Connection (2.5mm² Wire)
Protection Level: IP20 (Need to be Installed in Cabinet)
