Type: 174-20TN Set A01
Article No: 2301-0560
The LISENS grid light curtains are non-contact sensors that are used for protecting crushing, shearing and impact hazards on many types of automatic industrial doors. (PLEASE NOTE: LISENS grid is not currently suitable for use on outdoor automatic gate systems).
Maintain the aesthetic of your door system and allow high operating speeds, thanks to its low profile design and concealed installation the LISENS grid operates discreetly and intelligently.
Features:
Protective height of 2500mm and overall height of 2620mm (BH)
Shipping friendly: short packaging length of 2.65 m
Universally connectable: FSS, PNP, NPN (optional)
Integrated evaluation electronics
Integrated electronic alignment aid
For closing speeds up to max. 2 m/s
For flexible use: activatable blanking function
Robust extruded aluminium housing
Connecting cables with color-coded M8 snap connectors - easy to install, reverse polarity protected, flexible and economical
The innovative optical sensor solution from ASO
Made in Germany - developed and produced in the highest quality
Kit Contents:

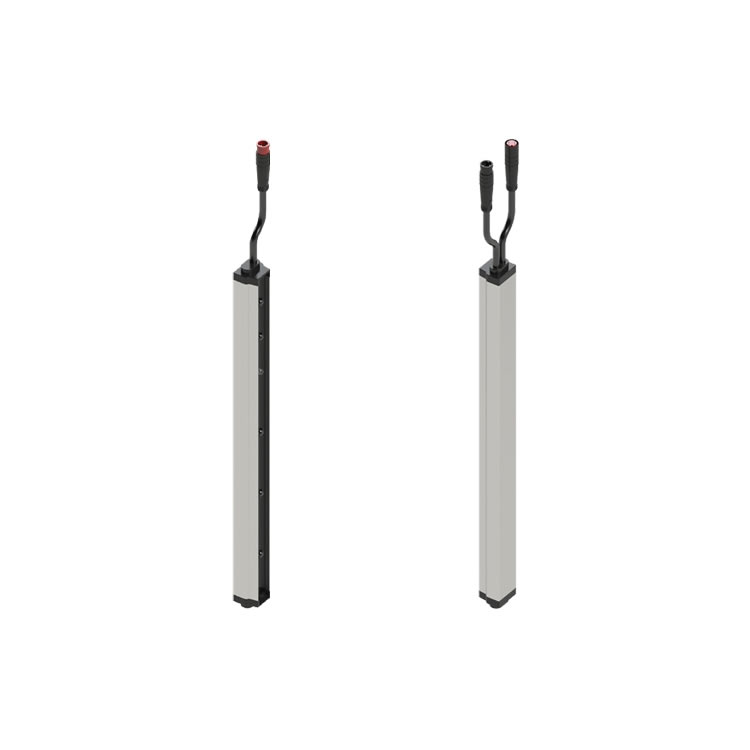

P.01 - Light curtain Tx (transmitter unit)
P.02 - Light curtain Rx (receiver unit)
P.03 - Assembly clips
P.04 - Screws for assembly clips
P.05 - LISENS connecting cable
P.06 - Controller connecting cable
