The DSv-SIN P features intrinsically safe inputs: It is associated equipment placed in safe areas or ATEX/IECEx Zone 2.
It allows for mode simulation to verify configurations or installations.
Easy programming can be done on the front panel using an LCD touch-screen micro-console or SlimSet PC software.
Technical Specifications

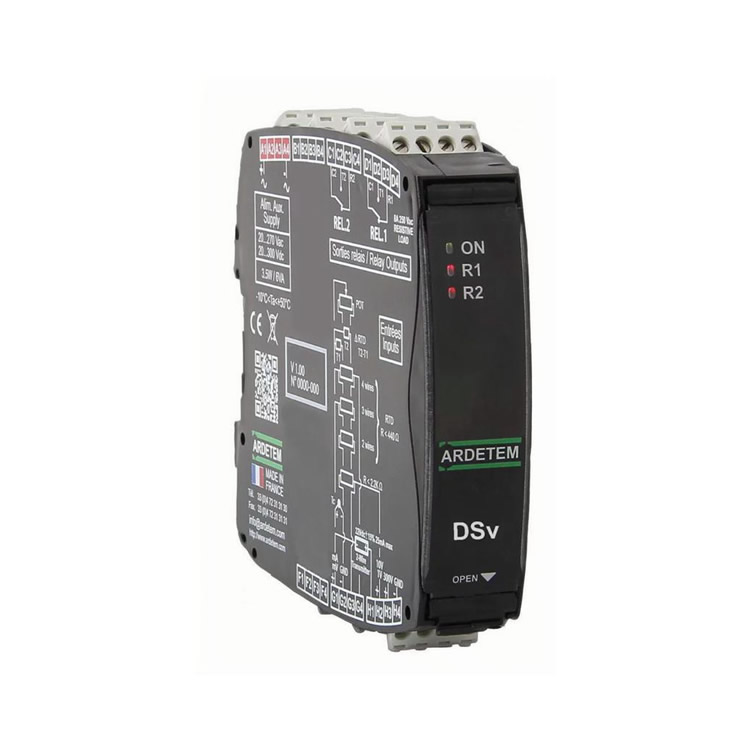

Setpoint Detector with Bidirectional Process, ATEX Intrinsically Safe
ATEX CE 0344 Ex II (1) GD [Ex ia] IIC Certification and [Ex iaD] Certification
Bidirectional IS Input: Milliampere, Millivolt, Voltage
Output: 2 Changeover Relays
Supports 2-Wire Sensors
Power Supply: 24 VDC
Accuracy: 0.1%
Response Time: 150 ms
Programmable Scaling Factor
Designed for DIN Rail Mounting
Programmable via software or micro-console (optional)
