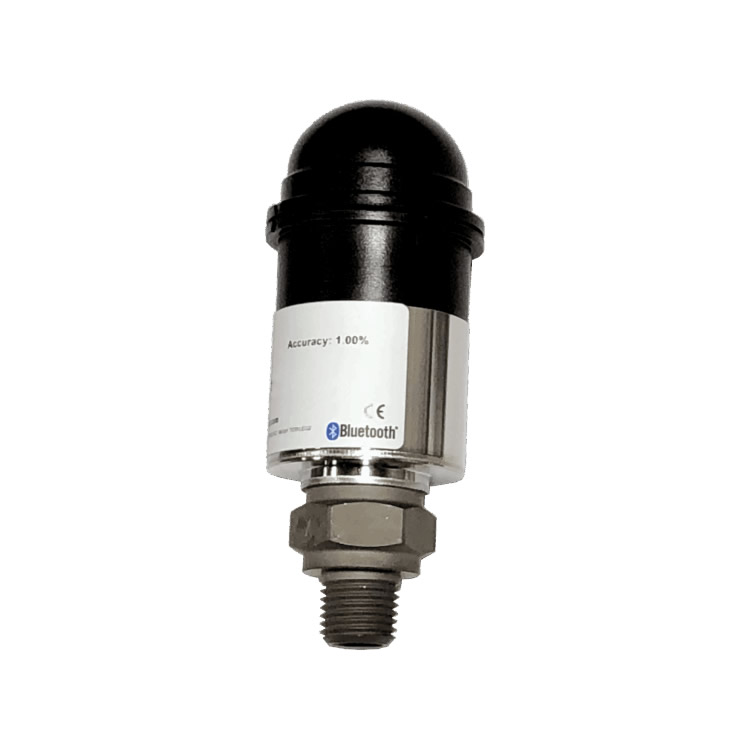

Pressure Range: 0-3000 PSI
Pressure Connection: 7/16-20 inch UNF Male
Connection Distance: 250 feet (Line of Sight)
Pressure Accuracy: 1% BFSL
Optional Units: PSI, bar, kPa, WC, KG/CM², MPa
Overpressure Protection: 2 times rated pressure
Burst Pressure: 5 times or 20,000 psi, whichever is lower
Pressure Cycle Life: >100 million cycles
Update Time: Via Bluetooth® wireless technology (1 second)
Operating Temperature: -40° to 185°F (-40° to 85°C)
Storage Temperature: -40° to 257°F (-40° to 125°C), without battery
TEB (Total Error Band): 3% BFSL
Long-term Drift: 0.2% FS/year (non-cumulative)
Shock Resistance: 50g, 11 milliseconds, half-sine wave
Vibration Resistance: 10g peak, 20 to 2400 Hz
EMI/RFI Protection: Yes
Rating: IP-65
Enclosure: 304 stainless steel housing and high-impact polycarbonate
Weight: 0.35 pounds
Dimensions: 3.7 × 1.35 × 1.35 inches
Pressure Range : 0-3000 PSI
Connection Type: 7/16 SAE
Data Logging: No
Accuracy: 1%
