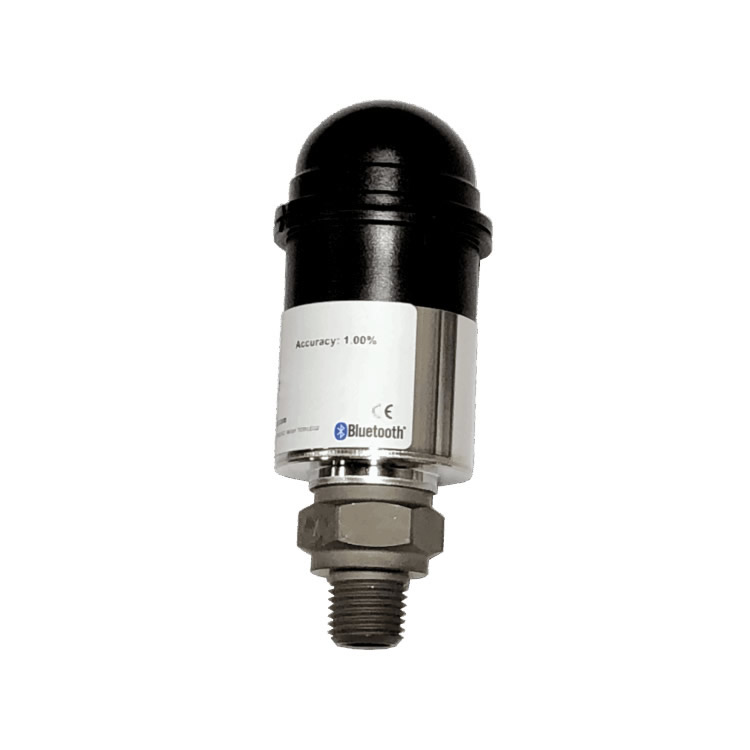

Pressure Range: 0-3000 PSI
Pressure Connection: 7/16 inch
Connection Distance: 250 feet (line of sight)
Pressure Accuracy: 1% BFSL (including non-linearity, hysteresis, and non-repeatability)
Optional Units: PSI, bar, kPa, WC, KG/CM², MPa
Measurement Interval: 50 milliseconds to 1 hour; Fill-to-Full: 50 milliseconds, 500 milliseconds, 1 second, 30 seconds, 1 minute, 10 minutes, 30 minutes, 1 hour; FIFO: 500 milliseconds, 1 second, 30 seconds, 1 minute, 10 minutes, 30 minutes, 1 hour
Recording Temperature: Requires an external temperature probe for recording temperature data
Storage Mode: Fill-to-Full: Recording stops when memory is full; First-In-First-Out (FIFO): When memory is full, recording starts from the beginning, replacing the earliest recordings, looking forward
Number of Single Logs: From 15,872 to 32,768
Send files recorded in the application via email
Overpressure Protection: 2 times rated pressure
Burst Pressure: 5 times or 20,000 psi, whichever is lower
Number of Pressure Cycles: >100 million
Update Time: Bluetooth® wireless technology (1 second)
Operating Temperature: -40° to 185°F (-40° to 85°C)
Storage Temperature: -40° to 257°F (-40° to 125°C), excluding battery
TEB: 3% BFSL (including: non-linearity, hysteresis, and non-repeatability)
Long-Term Drift: 0.2% FS/year (non-cumulative)
Shock: 50g, 11 milliseconds, half-sine wave
Vibration: 10g peak, 20 to 2400 Hz
EMI/RFI Protection: Yes
Rating: IP67
Enclosure: 304 stainless steel housing and high-impact polycarbonate
Weight: 0.35 pounds
Dimensions: 3.7 × 1.35 × 1.35 inches
Pressure Range: 0-3000 PSI
Connection Type: 7/16-20" sphere (SAE)
Data Logging: Yes
Accuracy: 1%
