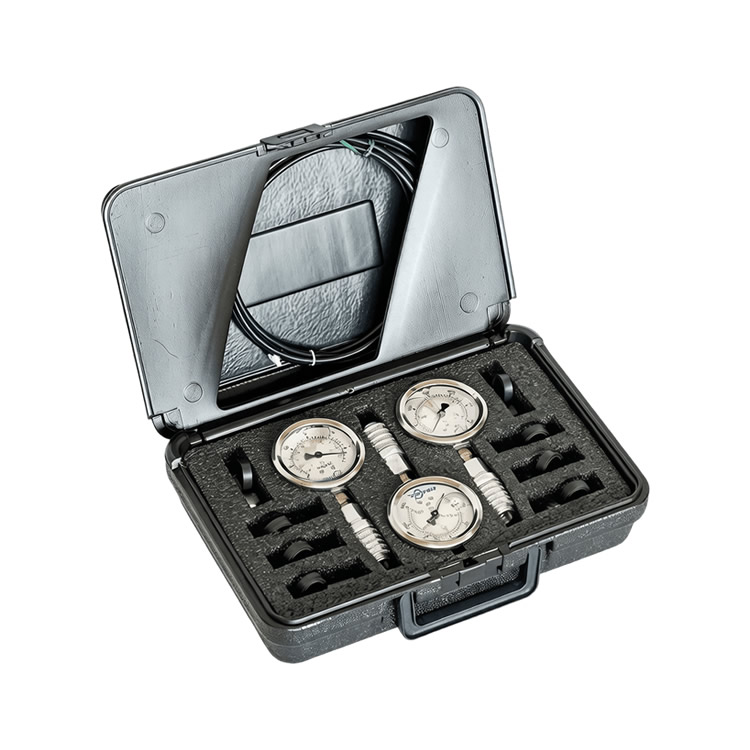

The HC-TKC1-PD Test Kit includes:
0 to 30″ Hg (0 to -1.0 bar) vacuum gauge with ‘PD Series’ diagnostic test coupler.
0 to 3000 PSI (0 to 207 bar) pressure gauge with ‘PD Series’ diagnostic test coupler.
0 to 6000 PSI (0 to 414 bar) pressure gauge with ‘PD Series’ diagnostic test coupler.
Two (2) 60″ (1524 mm) microbore hose assemblies. Each hose assembly has one (1) male ‘PD Series’ test nipple and one (1) ‘PD Series’ test coupler on either end.
One (1) 1/8″ NPT male ‘PD Series’ diagnostic test nipple.
One (1) 1/4″ NPT male ‘PD Series’ diagnostic test nipple.
One (1) 1/4″ NPT female ‘PD Series’ diagnostic test nipple.
One (1) 7/16″ ORB male ‘PD Series’ diagnostic test nipple.
One (1) 9/16″ ORB male ‘PD Series’ diagnostic test nipple.
One (1) M10x1 male ‘PD Series’ pressure test connector.
One (1) M14x1.5 male ‘PD Series’ pressure test connector.
One (1) M16x1.5 male ‘PD Series’ pressure test connector.
Pressure gauges are 2-1/2″ glycerine-filled, stainless-steel, Bourdon tube-type, dual scale (imperial and metric).
Weight：5.2 lbs
Dimensions：12 × 4 × 7.5 in
