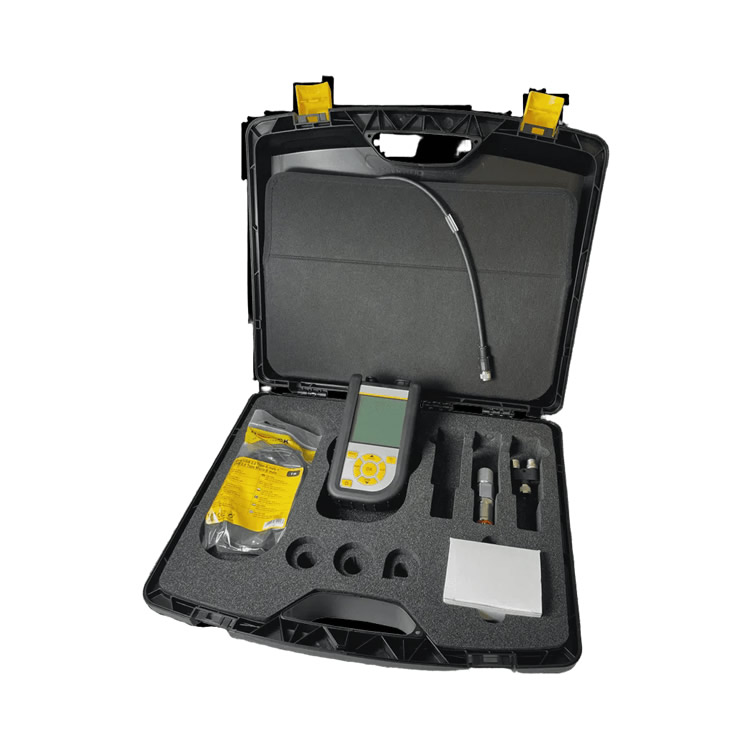

Serviceman Plus (HPM 4000) Kit Features:
(x1) Serviceman Plus (HPM4000) digital hydraulic tester – 3 Intelligent Digital (CAN) sensor inputs
(x1) Pressure Transducer, 8700 PSI (600 bar) with M16x2 female swivel connection.
(x1) Connecting Cable, 2m
(x1) Y-Connector
(x1) Terminating Resistor
USB interface to PC for convenient analysis and documentation via SensoWin software
(x1) Protective Carry-case with foam insert
Measurement Options:
Pressure: PSI and bar (Pressure Transducer). Kit does come with one pressure transducer.
Temperature: Fahrenheit and Celsius
Volume Flow: US GPM and LPM (Flow Turbine)
Rotational Speed: RPM
Technical Data:
Display: Type: FSTN-LCD, graphical with LED background lighting.
Visible area: 62mm x 62mm. Resolution: 130 x 130 pixels
Memory: Internal measure value memory: 1 measurement, approx. 15,000 data records (270,000 measure values ACT/MIN/MAX). USB memory stick: 1 GB supplied
Functions: Difference; addition; output; ACT; MIN; MAX; FS; TEMP display; battery charge; start-stop measurement
Interfaces: USB device: Online data transfer between device and PC via SensoWin software; measured value transfer: ACT/MIN/MAX, min. 5 mns; USB standard: 2.0, full speed; connection assembly: Micro USB socket, protected, type B. USB host: Connection of USB memory stick, max. 4 GB; recommended types: Delock USB 2.0 nano memory stick, Intenso Micro Line; USB standard: 2.0, full speed, max. 100 mA; connection assembly: Micro USB socket, protected, type B
Battery: Analog version: Type: Lithium-ion pack; 3.7 V DC/2250 mAh. Battery charging time with power supply: Approx. 3.5 hours. Battery discharge period: > 8 hours, with 2 sensors. CAN version: Type: Lithium-ion pack; 3.7 V DC/4550 mAh. Battery charging time with power supply: Approx. 7 hours Battery discharge period: > 8 hours, with 2 CANBUS sensors
Weight: 540 grams (1.19 lbs)
Dimensions: 96 x 172 x 54 mm (3.78″ x 6.77″ x 2.13″)
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -25°C – 60°C (-13°F – 140°F)
Relative Humidity: <80%
Environmental Assessment: DIN EN 60068-2-32 (1 m free fall)
Protection Category (EN60529): Analog IP54, CAN IP67
Weight：3 lbs
Dimensions：18 × 15 × 4 in
