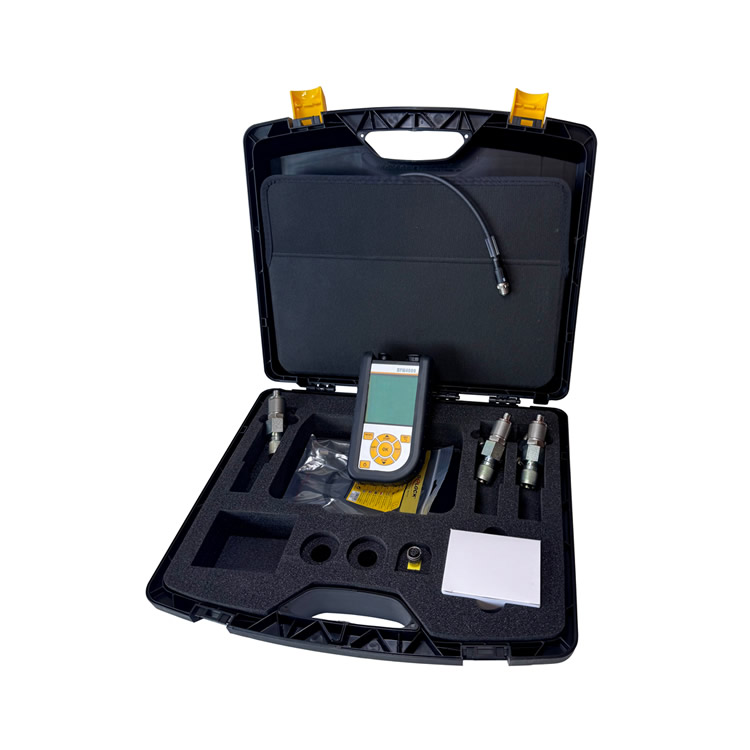

Serviceman Plus (HPM 4000) Kit Features:
(x1) Serviceman Plus (HPM4000) digital hydraulic tester – 3 Intelligent Digital (CAN) sensor inputs
(x2) Pressure Transducer, 8700 PSI (600 bar) with M16x2 female swivel connection.
(x1) Pressure Transducer, 870 PSI (60 bar) with M16x2 female swivel connection.
(x1) Connecting Cable, 2m
(x2) Connecting Cable, 5m
(x2) Y-Connector
(x1) Terminating Resistor
USB interface to PC for convenient analysis and documentation via SensoWin software
(x1) Protective Carry-case with foam insert
Technical Data:
Display: Type: FSTN-LCD, graphical with LED background lighting.
Visible area: 62mm x 62mm. Resolution: 130 x 130 pixels
Memory: Internal measure value memory: 1 measurement, approx. 15,000 data records (270,000 measure values ACT/MIN/MAX). USB memory stick: 1 GB supplied
Functions: Difference; addition; output; ACT; MIN; MAX; FS; TEMP display; battery charge; start-stop measurement
Interfaces: USB device: Online data transfer between device and PC via SensoWin software; measured value transfer: ACT/MIN/MAX, min. 5 mns; USB standard: 2.0, full speed; connection assembly: Micro USB socket, protected, type B. USB host: Connection of USB memory stick, max. 4 GB; recommended types: Delock USB 2.0 nano memory stick, Intenso Micro Line; USB standard: 2.0, full speed, max. 100 mA; connection assembly: Micro USB socket, protected, type B
Battery: Analog version: Type: Lithium-ion pack; 3.7 V DC/2250 mAh. Battery charging time with power supply: Approx. 3.5 hours. Battery discharge period: > 8 hours, with 2 sensors. CAN version: Type: Lithium-ion pack; 3.7 V DC/4550 mAh. Battery charging time with power supply: Approx. 7 hours Battery discharge period: > 8 hours, with 2 CANBUS sensors
Weight: 540 grams (1.19 lbs)
Dimensions: 96 x 172 x 54 mm (3.78″ x 6.77″ x 2.13″)
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -25°C – 60°C (-13°F – 140°F)
Relative Humidity: <80%
Environmental Assessment: DIN EN 60068-2-32 (1 m free fall)
Protection Category (EN60529): Analog IP54, CAN IP67
Weight：4 lbs
Dimensions：18 × 15 × 4 in
