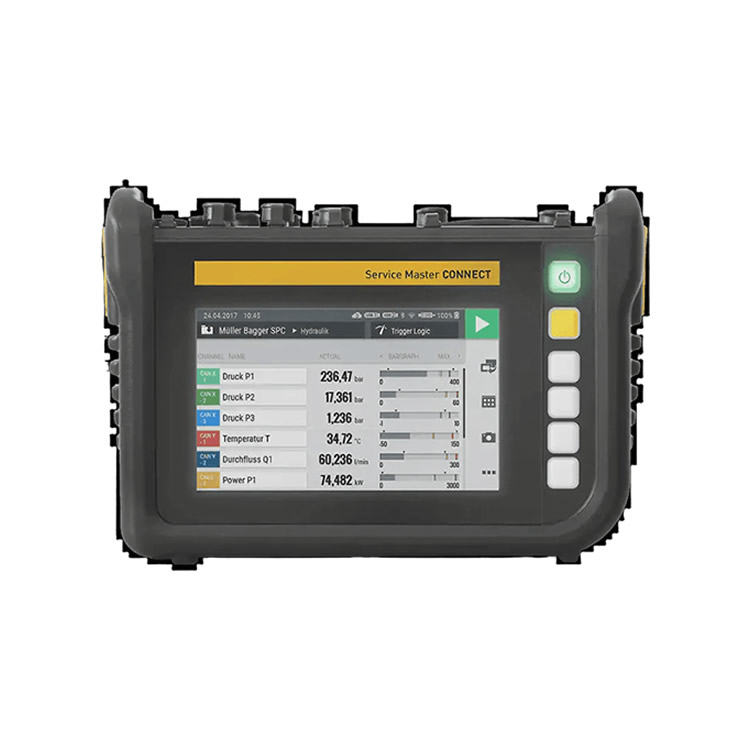

The base model (does not come with input modules) enables you to simultaneously measure up to 48 CAN channels. Alternatively, up to 5 External CANOpen channels can be connected. Two frequency inputs or Digital Input/Digital Output are also possible thanks to a dual-function connector.
Modular upgrades: The Service Master CONNECT (HPM7000) features a unique modular system which means two input Modules can be added or changed by the user, allowing you to upgrade the device over time to meet the needs of the most demanding application.
The CAN Input Module: allows the connection of up to 48 CAN, CANOpen, J1939 or any mixture of several CAN protocols in a passive way (no power is supplied to the sensors from this module). This allows the user to ‘listen’ to the other CAN signals traveling on a bus, without disturbing them.
The Analogue Input Module: enables back compatibility with sensors that have Sensor Recognition (SR). It also enables connection to current (e.g. 0-20 mA or 4-20 mA) and/or voltage (e.g. 0-5, 0-10 V) sensors.
Analysis of measurements can be done thanks to two cursors that can be inserted to obtain measured and delta values. All data can be exported to a PC running HPMComm 7.5 for further analysis or storage off the unit.
Connecting to a PC: USB slave and USB host allow the unit to stream to a PC or laptop and allow for the connection of additional storage. The Service Master CONNECT (HPM7000) can also be controlled and monitored remotely using the LAN connection and a VNC remote desktop application that runs on a PC.
Features:
Complete range of sensors – pressure, flow, temperature, RPM, & contamination.
CAN sensors for plug and play functionality.
Third-Party CAN sensors (External CAN) can be displayed and logged. A CAN Monitor assists during the installation of CAN channels and analysis of the CAN bus.
Two slots for Input Modules (CAN/J1939 and Analogue) are available on the Base Model. These can be added/changed by the user.
IP65 and rubberized case surround for protection in harsh environments.
Complete with HPMComm 7.5 – PC software. Connectivity – USB, Ethernet.
Measurements:
Pressure: PSI and bar (Pressure Transducer)
Temperature: Fahrenheit and Celsius
Volume Flow: US GPM and LPM (Flow Turbine)
Rotational Speed: RPM
Technical Data:
CAN Sensor Inputs: 2 CAN bus networks with 24 CVN bus channels each. Supports CAN 2.0 A/CAN 2.0 B
Sample Rate: 1 ms – 1000 measured values
Plug-in Connection: M12x1, 5 pin with SPEEDCON®, Built-in connector
Connection: M12x1 SPEEDCON® female. (5-pin)
Supply: 24 VDC 80 mA
Input Signals: Frequency (0 Hz … 20 KHz)
Accuracy: -≤± 0.1%
Input Module Slots: Flexible assembly with up to 2 modules
Touch Display: 7“, 800 x 480 pixels, brightness: 450 cd. Use with gloves possible.
USB Device Interface: Data transmission between device and PC
USB Host 1 Interface: USB 2.0, the connection of external storage media
USB Host 2 Interface: USB 2.0, the connection of external storage media
Memory: 12 GB
SIM Card: MINI-SIM insertion
Wireless Communication: SMC-600-00: WLAN, Bluetooth LE (Europe)
Ambient Temperature: 14 to 122 °F (-10 to 50 °C)
Protection Class: IP 65 (EN/IEC 60529:2014)
Rechargeable Battery: Lithium-ion pack, 14.4 V/3350 mAh
External Power Supply: 110/240 VAC – 24 VDC/3.5 A car charging cable as an accessory (12/24 VDC)
Connection Type: 3 pin
Housing Material: ABS/PC (thermoplastic resin)
Housing Protective Cover: TPE (thermoplastic elastomer)
Weight: 4.1 lb, 1.88 kg (without input modules)
Dimensions (W x H x D): 11.1″ x 7.7″ x 3.4″ (282 x 195 x 85 mm)
Weight：4.2 lbs
Dimensions：12 × 9 × 4 in
Description：Base model without input modules.
Inputs：2 CAN bus networks, 24 CAN bus channels each.
Alternative at CAN Y up to 5 external CANopen channels.
Dual-function input (D-IN/D-OUT or Frequency).
