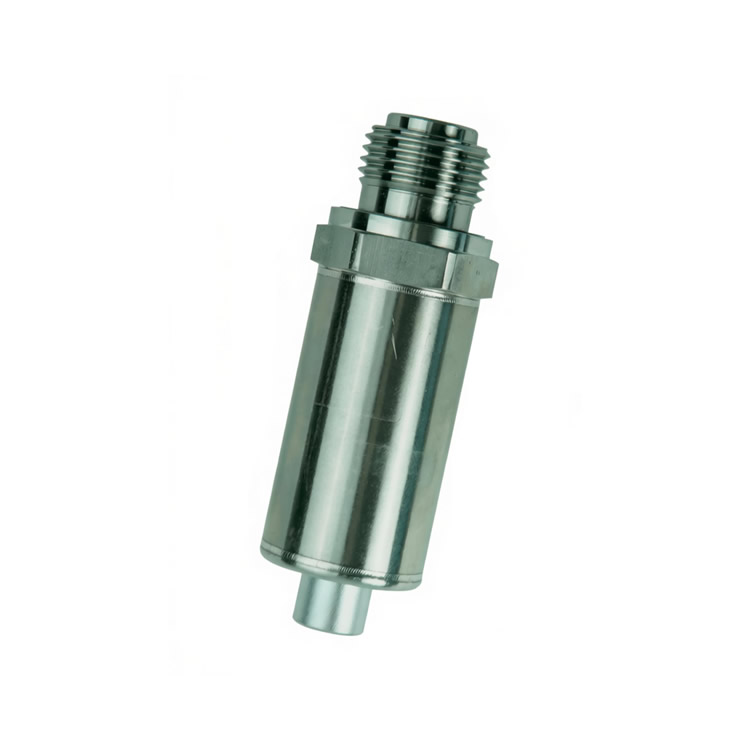

Features:
Small size
Robust stainless steel design
Response times of 1 ms
Captures peak pressure
Laser-welded and labeled
Two transducers of the same pressure range can measure differential pressure
Specifications:
Pressure Range: -14.5 to 217 PSI (-1 to 15 bar)
Pressure Accuracy: ±0.5% of full-scale
Digital Connection Type: CAN-Open Protocol
Ambient Temperature Range: -4° to 185°F (-20° to 85°C)
Media Temperature Range: -13° to 221°F (-25° to 105°C)
Temperature Accuracy: ±1.5°F (±3°C)
Response Time: 1 ms
Process Connection: Male G1/2 BSPP
Main Body: Stainless-steel
Sealing: Viton® (FKM)
Measure differential pressure.
Pressure transducers do not include connecting cables
Weight 0.38125 lbs
Dimensions 3 × 1.5 × 1.5 in
Pressure Range
-15 to 210 PSI (-1 to 15 Bar)
Connection
M16x2 Female Swivel (Test 20/Minimess)
