Male pipe (NPT) plugs – 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″
Oring Boss (SAE) straight thread connectors – #4, #6, #8, #10, #12, #16, #20, #24
JIC 37º female connectors – #4, #6, #8, #10, #12, #16, #20, #24
ORFS female connectors. – #4, #6, #8, #10, #12, #16, #20, #24
Split flange (code 61) connectors.
Split flange (code 62) connectors.

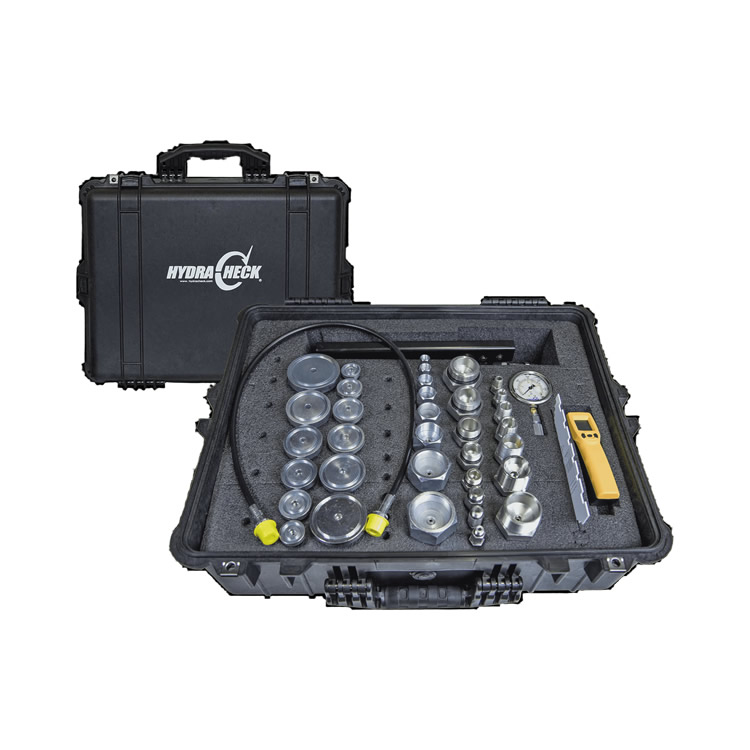

The HC-TK2000 test kit includes:
0 to 3000 PSI (207 bar) pressure gauge with M16x2 direct gauge adaptor.
24″ (607mm) hose assembly with M16x2 (Test 20) female swivel ends.
MicroLeak hand-operated test pump, 3000 PSI (207 bar).
Infrared, non-contact, mini-thermometer, with laser sighting.
NPT adaptors size: 1/4″ to 1-1/2″.
SAE adaptors size: #4 to #24.
JIC adaptors size: 1/4″ to 1-1/2″.
ORFS adaptors size: 1/4″ to 1-1/2″
Code 61 adaptors size: 1/2″ to 1-1/2″.
Code 62 adaptors size: 1/2″ to 1-1/2″.
Optional Caterpillar®-style adaptors size: 1/2″ to 2″.
Weight：37.2 lbs
Dimensions：24 × 9 × 19 in
Maximum Operating Pressure：
3000 PSI
207 Bar
Hose Size：
24 in
607 mm
NPT Adaptor Size：1/4 to 1-1/2 in
SAE Adaptor Size：#4 to #24
JIC Adaptor Size：1/4 to 1-1/2 in
Code 61 Adaptor Size：1/2 to 1-1/2 in
Code 62 Adaptor Size：1/2 to 1-1/2 in
