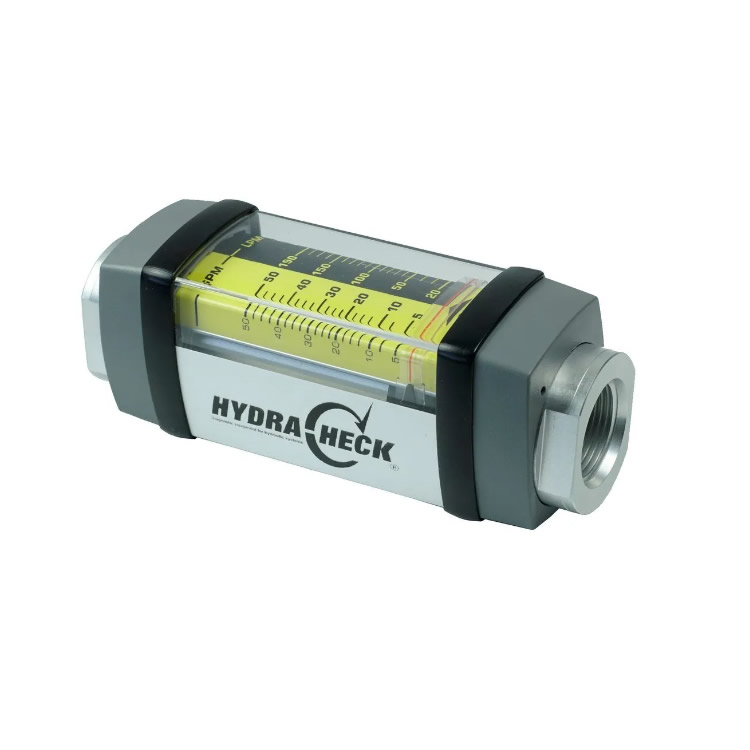

Ideal for monitoring pump performance and media flows in hydraulic systems.
3 – 30 GPM (10 – 115 Lpm).
Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
Materials: 2024 – T351 Anodized aluminum body, piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 1.99375 lbs
Dimensions 8.5 × 3.5 × 3 in
Pressure
3500 PSI
(241 Bar)
Flow
3 to 30 GPM
(10 to 115 LPM)
Length
7.2 inches (183 mm)
Port Thread
#12 ORB (SAE)
