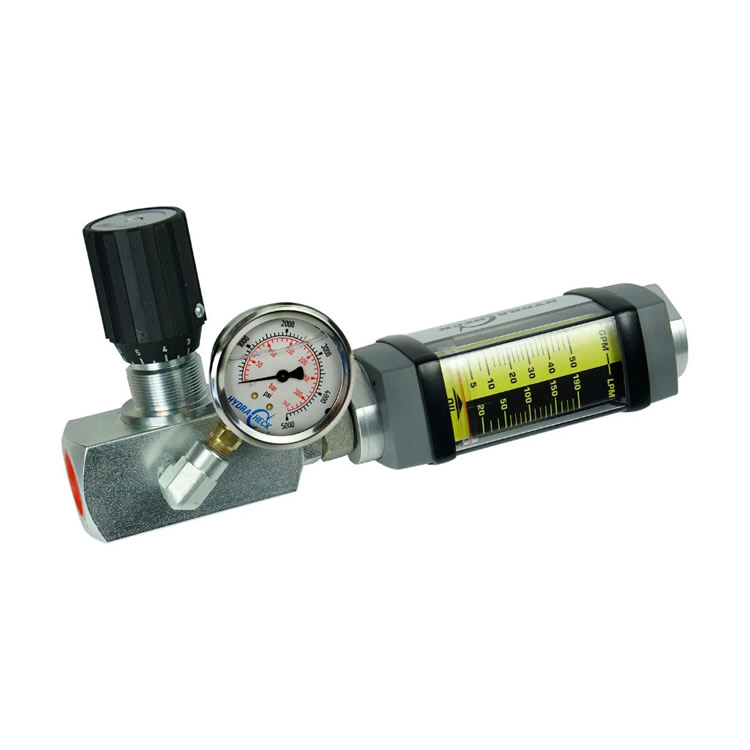

Inline flow meter – 3 to 30 GPM (10 to 115 Lpm).
Adjustable load valve comes equipped with a 5000 PSI (345 bar) glycerine-filled pressure gauge with a protective rubber boot.
Specifications:
Needle Valve Materials: Carbon steel body, zinc plated
Flow Meter Materials: T303 Stainless body, 2024 – T351 Anodized aluminum piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: 14 to +212 °F (-10 to +100 °C)
Pressure Rating: Stainless Steel Operating: 5,000 psi/345 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full-scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 7 lbs
Dimensions 11 × 3 × 5 in
Pressure
5000 PSI (345 Bar)
Flow
3 to 30 GPM (10 to 115 LPM)
Port Thread
#12 ORB (SAE)
