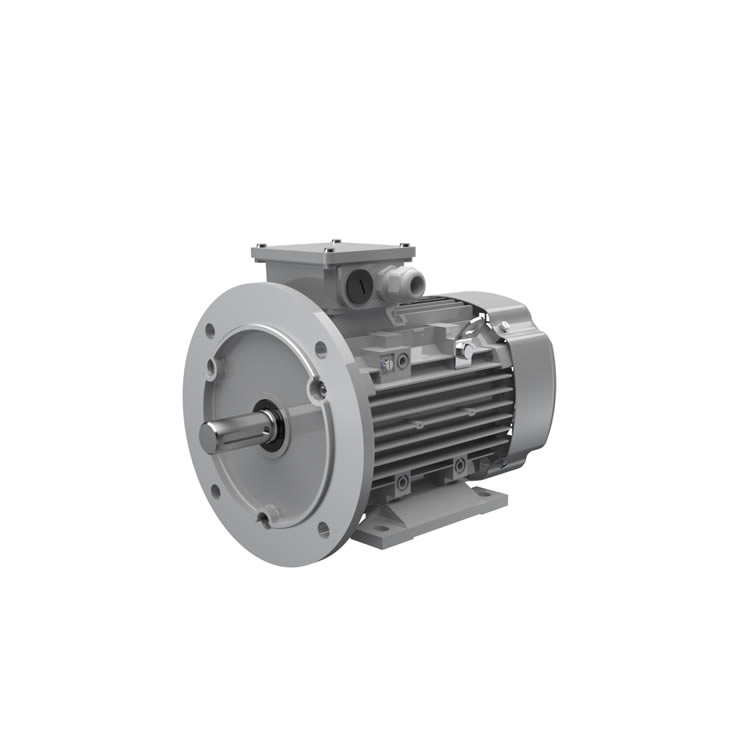

AC-Motoren FCPA 100 L 2/PHE Motor
Three-phase asynchronous motor, suitable for a wide range of industrial drive applications
Low weight due to aluminium housing and high efficiency
Products of this type can be extensively modified.
General data
| Eff.Cl.50Hz: | IE3 |
|---|---|
| Terminal box location: | top DE |
| Terminal box orientation: | cable gland to the right side |
| Type designation: | FCPA |
| Power 1 50Hz: | 3 |
| Poles: | 2 |
| Mounting: | B35 |
| Type of motor: | 3~ |
| Ambient temperature (°C): | -20 up to +40 |
| Atex: | - |
| Bearing DE: | 6206.ZZ.C3 |
| Cable gland size (cable connection): | 1xM25x1,5 1xblind plug |
| Cable gland size (option): | M16x1,5 |
| Capacitor: | - |
| Color: | RAL7030 |
| Connection: | Δ/Y |
| Duty: | S1 |
| Eff.Cl.60Hz: | IE3 |
| Frame execution: | L |
| Frame material: | AL |
| Frame size: | 100 |
| Frequency (Hz): | 50/60 |
| Insulationclass: | F/B |
| Mounting of bearing DE: | loose bearing |
| Mounting of bearing NDE: | loose bearing |
| Power 1 60Hz: | 3 |
| Protection class: | IP55 |
| Protection winding: | PTC 150°C |
| Rotation speed (1/min): | 2895/3474 |
| Shaft end: | 28 x 60 |
| Voltage 50Hz (V): | 400/690 |
| Voltage 60Hz (V): | 460/795 |
