Pressure Range:

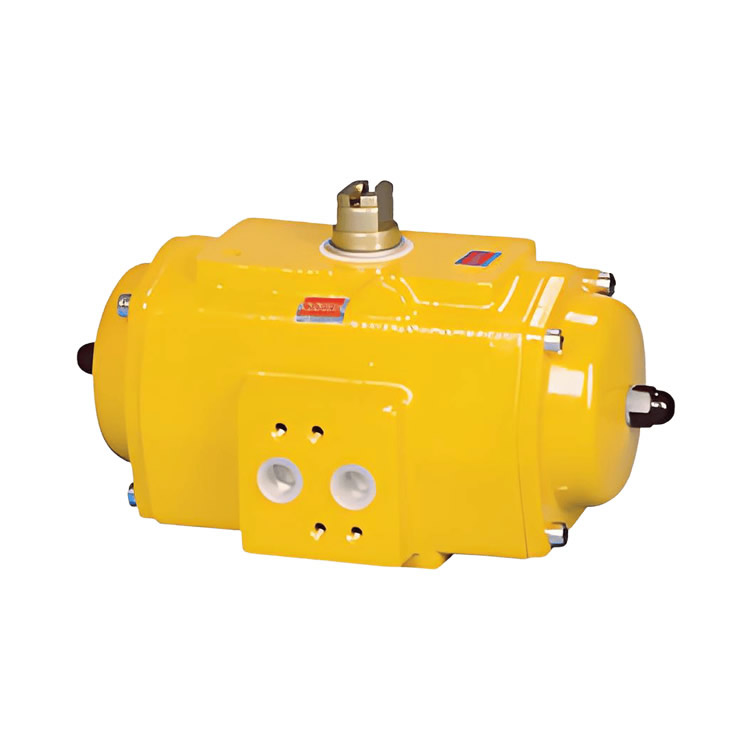

PE280: Weighing 11.6 kg, with a nominal diameter of 135 mm and a stroke of 31.4 mm
PE: 6 bar (with standard spring)
PE: 3 to 6 bar (with reduced-capacity spring)
Torque Range: 5 to 2477 Nm (under an operating pressure of 6 bar)
Applicable Media: Air (dry or lubricated), non-corrosive gases, or light hydraulic oil
Applicable Temperature: -20°C to +80°C
Rotation Direction: Opens counterclockwise when pressure is applied to port "A" (closes when air pressure fails, rotating clockwise)
Stroke Range: 180° (from -1° clockwise to 182° counterclockwise)
