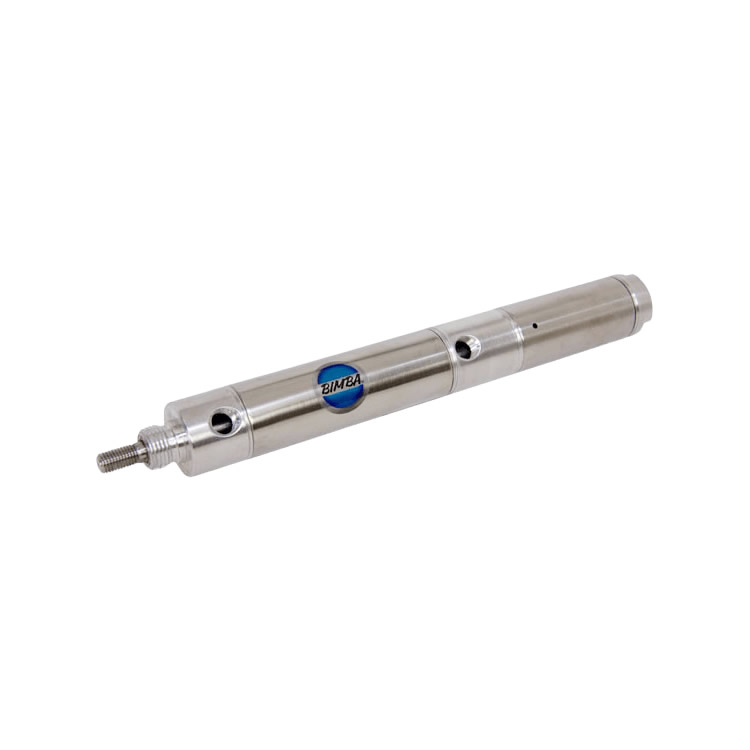

Double-Acting Pneumatic Cylinder with Built-In Magnet and Magnetic Reed Switch - Bimba (Original Line Magnetic Reed Switch (MRS) Series) - 1/2" Additional Rod Extension - 1-1/4" Bore (B1-1/4") - 13-1/8" Stroke (S13-1/8") - Dual-End or Rear Pivot Mounting - 3/8-24 UNF-2A (External Thread) Threaded Rod + 7/8-14 UNF-2A Threading (Both Ends) - 2 x 1/8" NPT Threaded Pneumatic Ports (Both Ends) - Stainless Steel Cylinder Body
Brand: BIMBA
Cylinder
Product Series/Series Name: Original Line Magnetic Reed Switch (MRS) Series
Sub-Range Name: MRS-12 Series
Bore: 1-1/4" Bore (B1-1/4")
Stroke Length: 13-1/8" Stroke (S13-1/8")
Function: Double-Acting Pneumatic Cylinder with Magnetic Reed Switch
Design: Built-In Magnet
Non-Repairable
Connection Type: 2 x 1/8" NPT Threaded Pneumatic Ports (Both Ends), 3/8-24 UNF-2A (External Thread) Threaded Rod, 7/8-14 UNF-2A Threading (Both Ends)
Length: 1/2" Additional Rod Extension
Mounting Method: Dual-End or Rear Pivot Mounting
Material: Stainless Steel Rod
Operating Environment: Air Temperature -20...+200°F / -28...+93°C
Advantages:
Optional switch tracks allow for belt-mounted or rail-mounted switch installation.
Standard 303 stainless steel rods come in sizes different from the original series, including the robust "Z-Line" feature.
The blue and improved design doubles the lifespan of previous cylinders.
Permanently lubricated with grease, requiring no additional lubrication during use.
Bimba, a U.S. manufacturer, produces a wide variety of stainless steel cylinders. Bimba cylinders save volume and space, making them particularly suitable for applications requiring precise spatial control. The Bimba factory develops cylinders of different shapes under conditions that ensure normal output and operation, catering to industries such as tobacco machinery and semiconductor equipment. Available models in stock include FM-0910-4F, FM-095-4LNT, FO-091, FMD-3110-4FL, FM-3140-4F, FM-0915, FM-0925-L, and many more. Bimba maintains nearly 200 cylinder models in stock, ensuring customers' normal production and demand are met through readily available inventory.
